LM4874
2.1W Differential Input, BTL Output Stereo Audio
Amplifier with Selectable Gain and Shutdown
General Description
The LM4874 features differential stereo inputs, BTL (bridge-
tied load) outputs, and four externally selectable fixed gains.
Operating on a single 5V supply, the LM4874 delivers 1.2W,
1.9W, or 2.1W (typ) of output power to an 8
, 4
, or 3
BTL
load (Note 1), respectively, with less than 1% THD+N. The
LM4874’s gain is selected using two digital inputs. The nomi-
nal gain values are 6dB, 10dB, 15.6dB, and 21.6dB.
The LM4874 is designed for notebook and other handheld
portable applications. It delivers high quality output power
from a surface-mount package and requires few external
components.
Other features include an active-low micropower shutdown
mode input and thermal shutdown protection.
Key Specifications
j
BTL output power
R
L
= 3
, V
DD
= 5.0V, and THD+N = 1%
j
BTL output power
R
L
= 4
, V
DD
= 5.0V, and THD+N = 1%
2.1W (typ)
1.9W (typ)
j
BTL output power
R
L
= 8
, V
DD
= 5.0V, and THD+N = 1%
j
Micropower shutdown current
j
PSRR (
@
1kHz, V
DD
= 5V, (Fig.1))
1.2W (typ)
0.1μA (typ)
62dB (typ)
Features
n
Fully differential input and output
n
Internal gain set: 6dB, 10dB, 15.6dB, and 21.6dB
n
Improved ’click and pop’ suppression
n
Thermal shutdown protection circuit
n
Ultra low current micropower shutdown mode
n
3.0V to 5.5V operation
n
Available in space-saving exposed-DAP TSSOP
package
Applications
n
Notebook computers
n
PDAs
n
Portable electronic devices

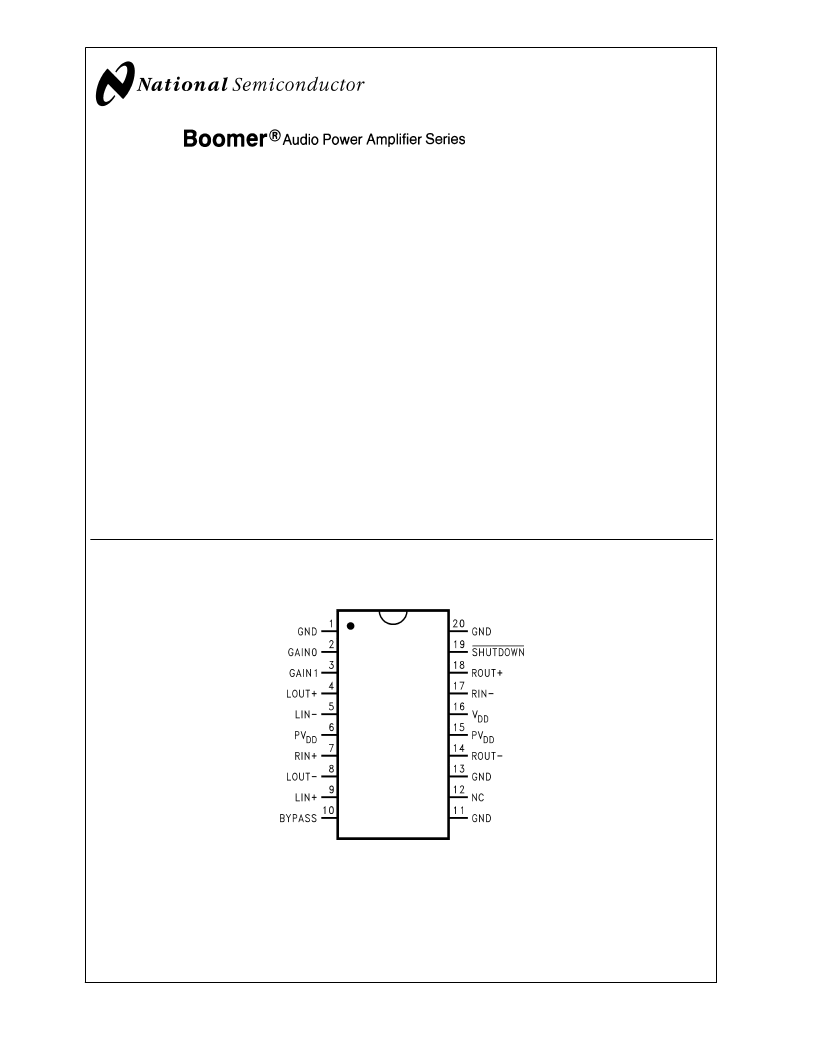

Connection Diagram
Top View
20046902
Order Number LM4874MH
See NS Package Number MXA20A for Exposed-DAP TSSOP
Boomer
is a registered trademark of National Semiconductor Corporation.
August 2002
L
a
2002 National Semiconductor Corporation
DS200469
www.national.com
