LC573914
No.6745-7/13

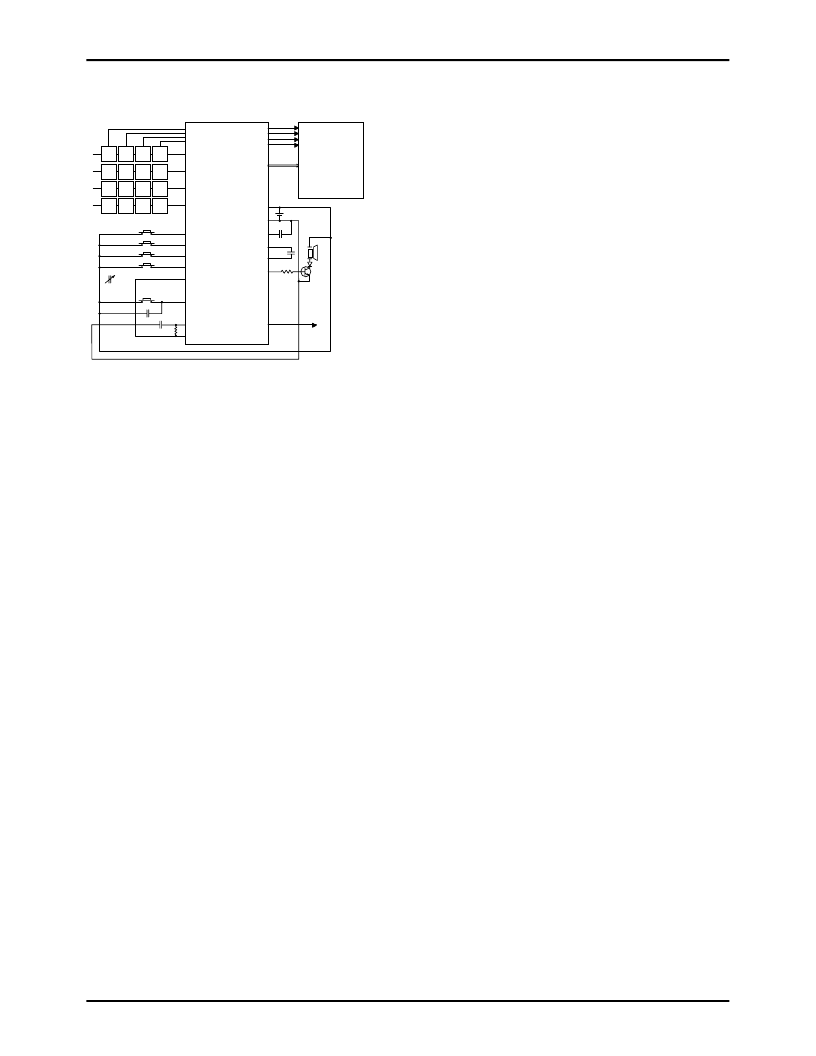

Sample Application Circuit
(1) Ag battery used application (1/2 bias 1/4 duty)
(Power supply : Ag battery version)
Note 1) If P0, P1 port or segment output (SEG17 to SEG32) are used for key scan output port, P-ch open drain option should
be used in order to prohibit signal short between output ports when two or more keys are pushed simultaneously.
Note 2) If P1 port is used as output port, the following setting is necessary. Programmable pull-down resistors which is one
of the internal pull-down register should be set to open mode with the SPDR instruction.
LCD GLASS
1/2 BIAS
1/4 DUTY
COM1
COM2
COM3
COM4
SEG1-32
KEY MATRIX
0.1
μ
F
VDD1
VSS
VDD2
CUP1
CUP2
ALM
0.1
μ
F
0.1
μ
F
P10
P11
P12
P13
S1
S2
OSCIN
OSCOUT
RES
P00
S3
S4
LIGHT
RCIN
RCOUT
1.5V(Ag)
