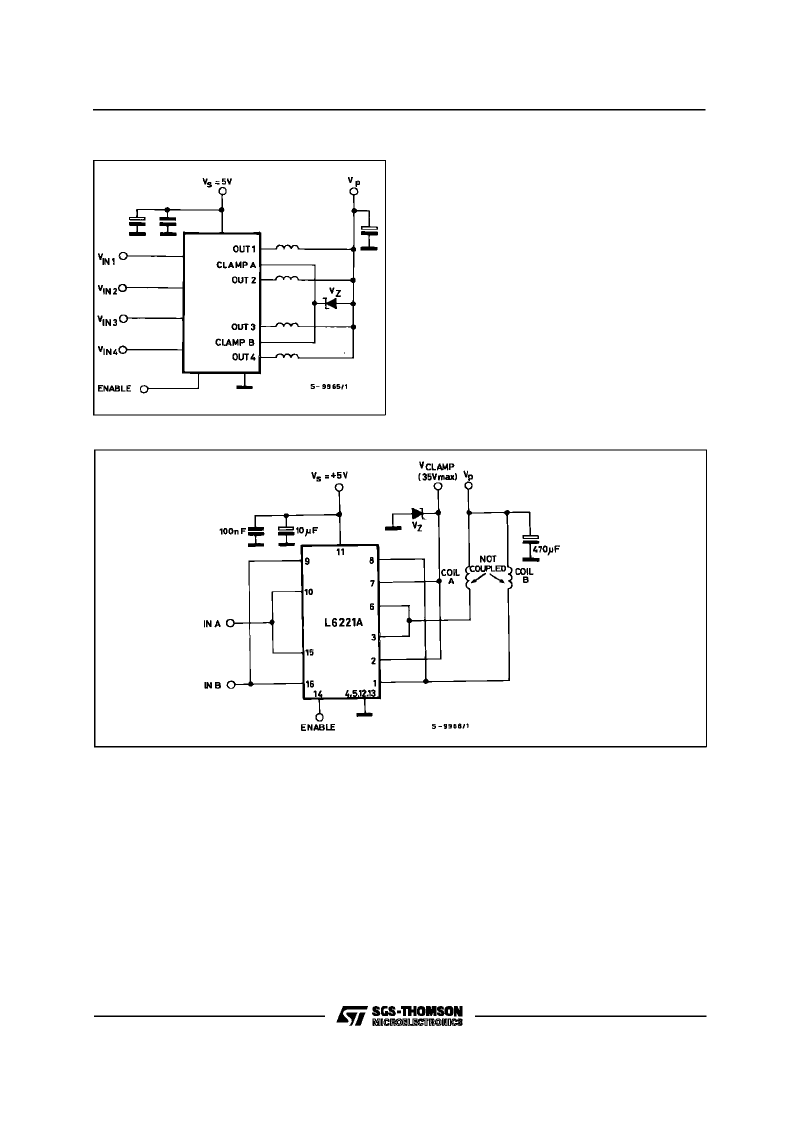

Figure 19 :
Driver for Solenoids up to 3A
.
Somecaremustbe takento ensurethatthecollec-
torsareplacedclosetogetherto avoiddifferentcur-
rent partitioningat turn-off.
We suggest to put in parallel channel 1 and 4 and
channel2 and3 asshowninfigure19forthesimilar
electricalcharacteristicsofthelogicsection(turn-on
and turn-offdelaytime) and the power stages(col-
lector saturation voltage, free-wheeling diode for-
ward voltage).
APPLICATION INFORMATION
When inductiveloads are driven by L6221C/CD,a
zenerdiodein serieswiththeintegralfree-wheeling
diodes increases the voltage across which energy
stored in the load is discharged and therefore
speedsthecurrentdecay(fig. 18).
The zener has to be chosen in such a way that
V
CLAMP
is limited to 60V taking into account the
zener’svoltagechangesdueto:spreadonV
Z
,tem-
peraturechanges,and the voltagedrop dueto oh-
micresistance.
Moreover,theinstantaneouspowermustbelimited
in orderto avoidthe reversesecondbreakdown.
Figure 18.
L6221C-L6221CN-L6221CD
9/15
