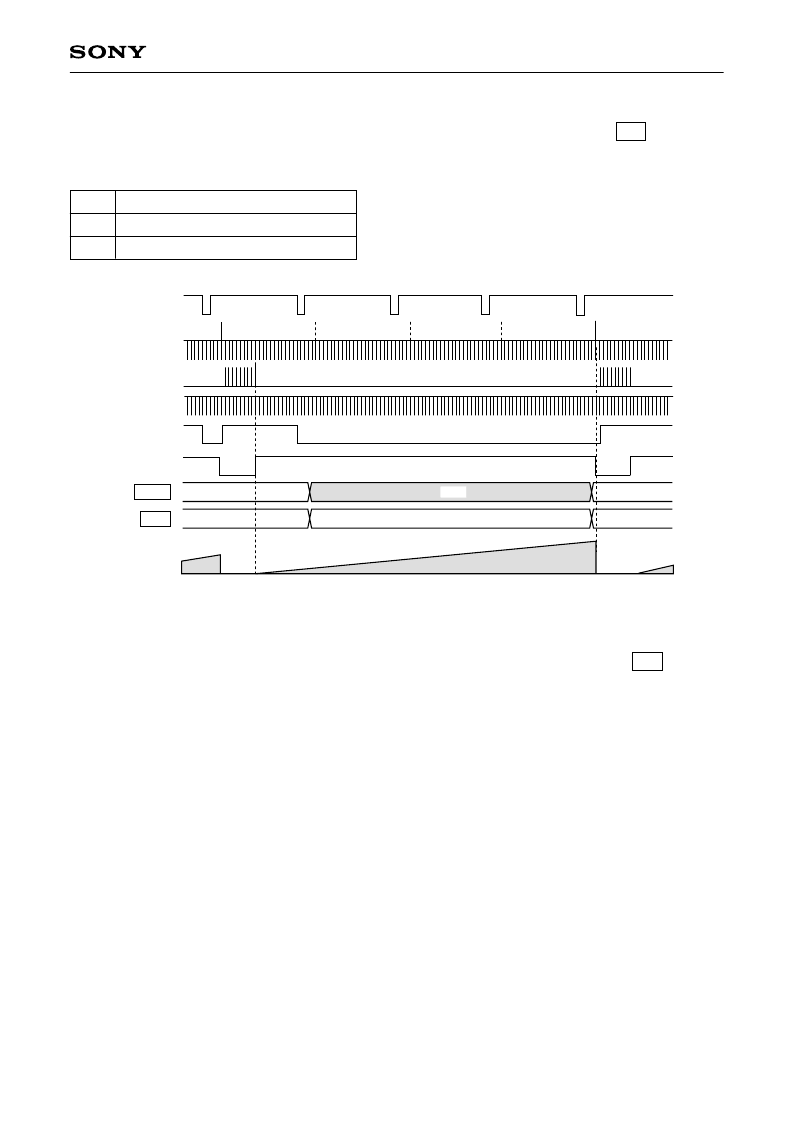

27
–
CXD3412GA
[HTSG control mode]
This mode controls the V1A/B and V3A/B ternary level outputs (readout pulse block) using D14 HTSG.
When control starts, V pulse modulation during readout period is not generated and the normal V transfer is
performed.
D14
0
1
Description of operation
Readout pulse (SG) normal operation
HTSG control mode
[EXP pulse]
The ID/EXP (Pin 9) output can be switched between the ID pulse or the EXP pulse using D33 EXP. The
default is the "ID" pulse. See the Timing Charts for the ID pulse. The EXP pulse indicates the exposure time
when it is high. In the draft mode, the transition point is the last SUB pulse falling edge, and midpoint value
(1443ck) of each V1A/B and V3A/B ternary output falling edge. When there is no SUB pulse, the later ternary
output falling edge (1538ck) is used. In the frame mode, the transition point is the last SUB pulse falling edge,
and each V1A/B and V3A/B ternary output falling edge (1348ck). When there is no SUB pulse, the V pulse
modulation falling edge just after ternary output (1386ck) is used. In addition, switching from ID to EXP is
performed at the timing (ID transition point of the horizontal period where V1A/B and V3A/B ternary output)
and reset to low.
See the EXP pulse indicated in the explanatory diagrams under Electronic Shutter for an image of operation.
VD
V1A
SUB
WEN
0
1
0
HTSG
1
0
1
SMD
VCK
Exposure time
EXP
