DATASHEET
DIGITAL VIDEO CLOCK SOURCE
ICS664-03
IDT / ICS DIGITAL VIDEO CLOCK SOURCE
1
ICS664-03
REV D 051310
Description
The ICS664-03 provides clock generation and conversion
for clock rates commonly needed in HDTV digital video
equipment. The ICS664-03 uses the latest PLL technology
to provide excellent phase noise and long term jitter
performance for superior synchronization and S/N ratio.
The ICS664-03 is suitable for Digital Video STB and DTV
applications. For Transmitter application use ICS664-01 or
ICS664-02.
For audio sampling clocks generated from 27 MHz, use the
ICS661.
Please contact IDT if you have a requirement for an input
and output frequency not included in this document. IDT
can rapidly modify this product to meet special
requirements.
Features
Packaged in 16-pin TSSOP
Pb (lead) free package, RoHS compliant
Clock or crystal input provides flexibility
Low phase noise supports enhanced SNR
Lowest jitter in class at 100 ps
Exact (0 ppm) multiplication ratios
Power-down mode lowers power consumption
Improved phase noise over ICS660
Provides High definition Video clocks for 720p, 1080i and
1080p YUV standards

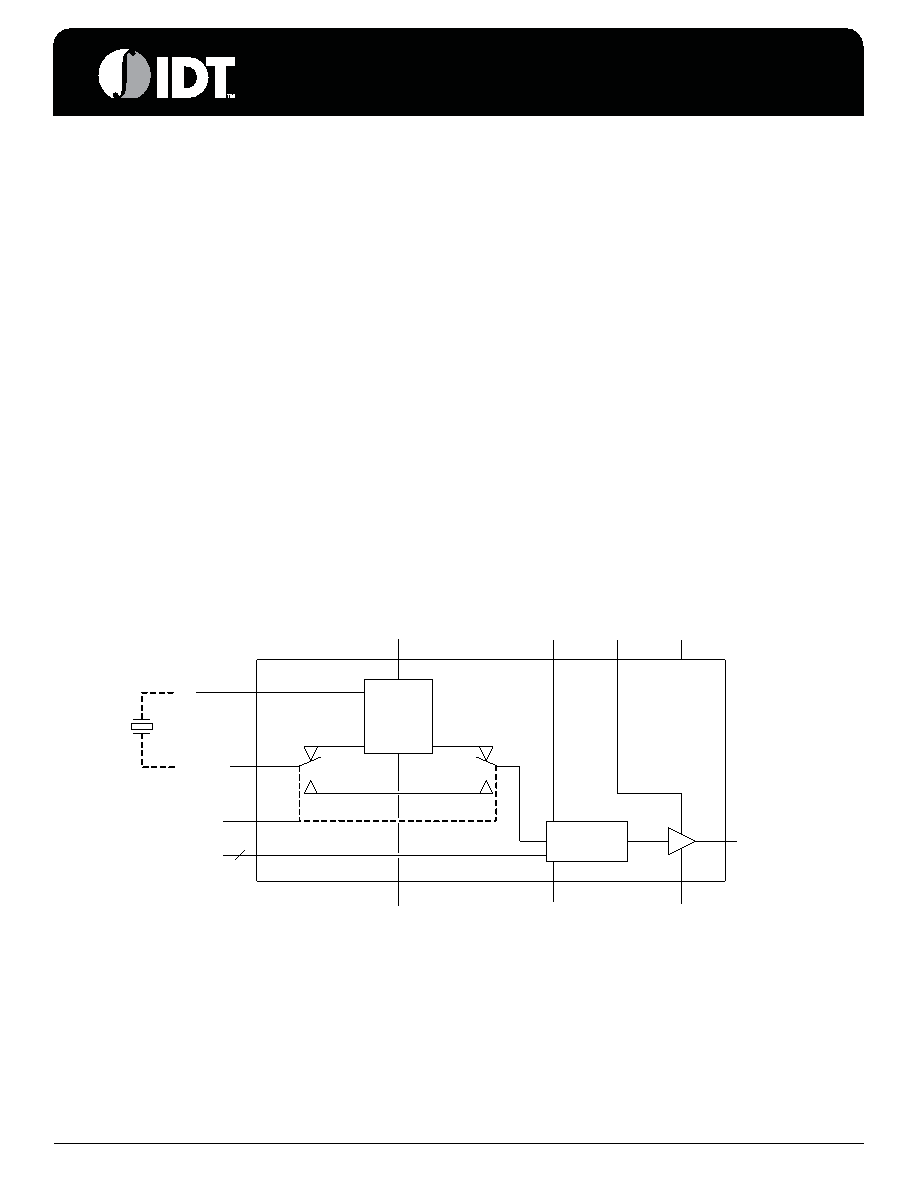

Block Diagram
PLL Clock
Synthesis
SELIN
Crystal
Oscillator
X2
X1/REFIN
VDD (P2)
VDD (P14)
CLK
GND (P6)
GND (P5)
GND (P13)
S3:0
4
VDD (P3)
VDDO
