3

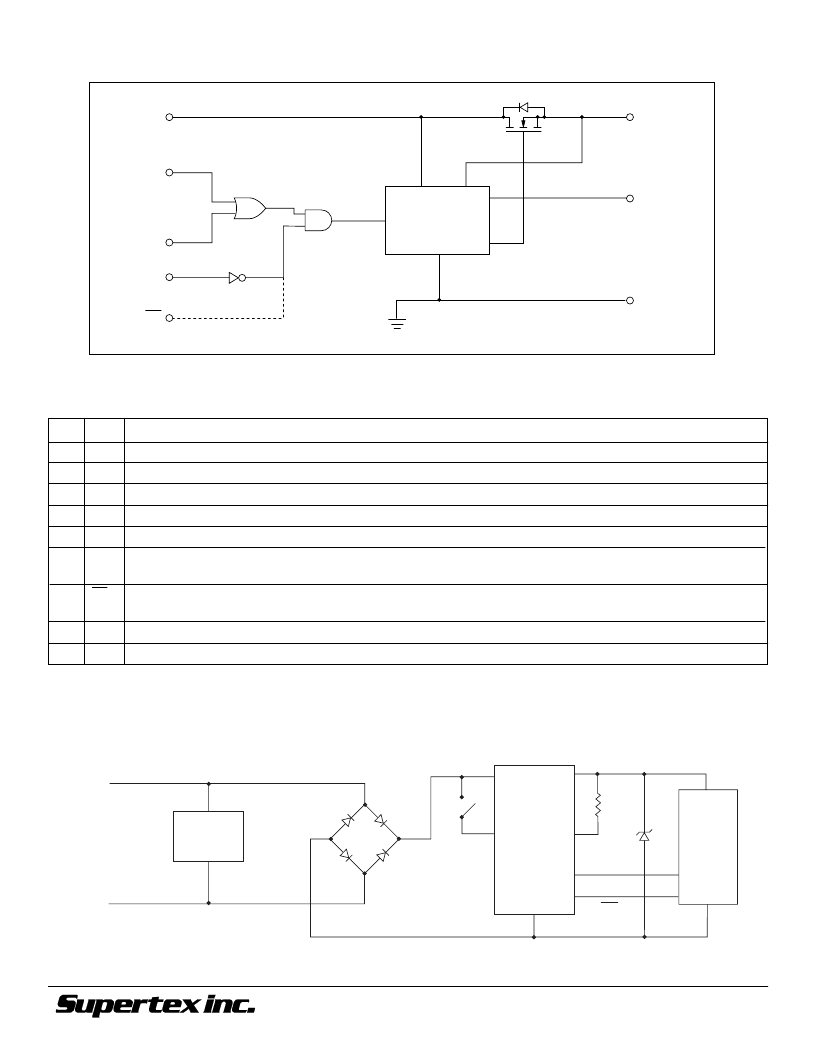

Block Diagram
TPG
TP
CS
GND
HKS
LS
DP
H = ON
L = OFF
Charge Pump
&
Logic Control
(1)
(2)
(5)
(6) for HT18
(6) for HT19
(8)
(7)
(3)
DP
Pin Description
Pin # Symb
Description
1
TPG
Positive input side of a telephone line, typically Tip side.
2
HKS
Hookswitch input. Connect HKS to TPG to turn on the hook switch. Internally pulled low with a high value resistor.
3
GND
Device ground. Negative side of a telephone line, typically Ring side.
4
NC
No Connect. Open Circuit. No internal connections to the device.
5
LS
Line switch input. Input logic high turns on the hook switch. Internally pulled low with a high value resistor.
6
DP
For HT18. Dial pulse input. Input logic high turns off the hook switch. Used for pulse dialing. Internally pulled low with a
high value resistor.
6
DP
For HT19. Dial pulse input. Input logic low turns off the hook switch. Used for pulse dialing. Internally pulled high with a
high value resistor.
7
CS
Current sense input. An external resistor connected between CS and TP sets the current limit.
8
TP
Positive output side of a telephone line. Zener protection to prevent this output from rising above 18V is required.
HT18/HT19
Typical Application Circuit
Tip
Ring
Transient
Protection
TPG
HKS
GND
DP/DP
LS
CS
R
SEN
15V
HT18
or
HT19
Telecom
Circuit
TP
1235 Bordeaux Drive, Sunnyvale, CA 94089
TEL: (408) 744-0100 FAX: (408) 222-4895
www.supertex.com
12/13/010
2001 Supertex Inc. All rights reserved. Unauthorized use or reproduction prohibited.
