2

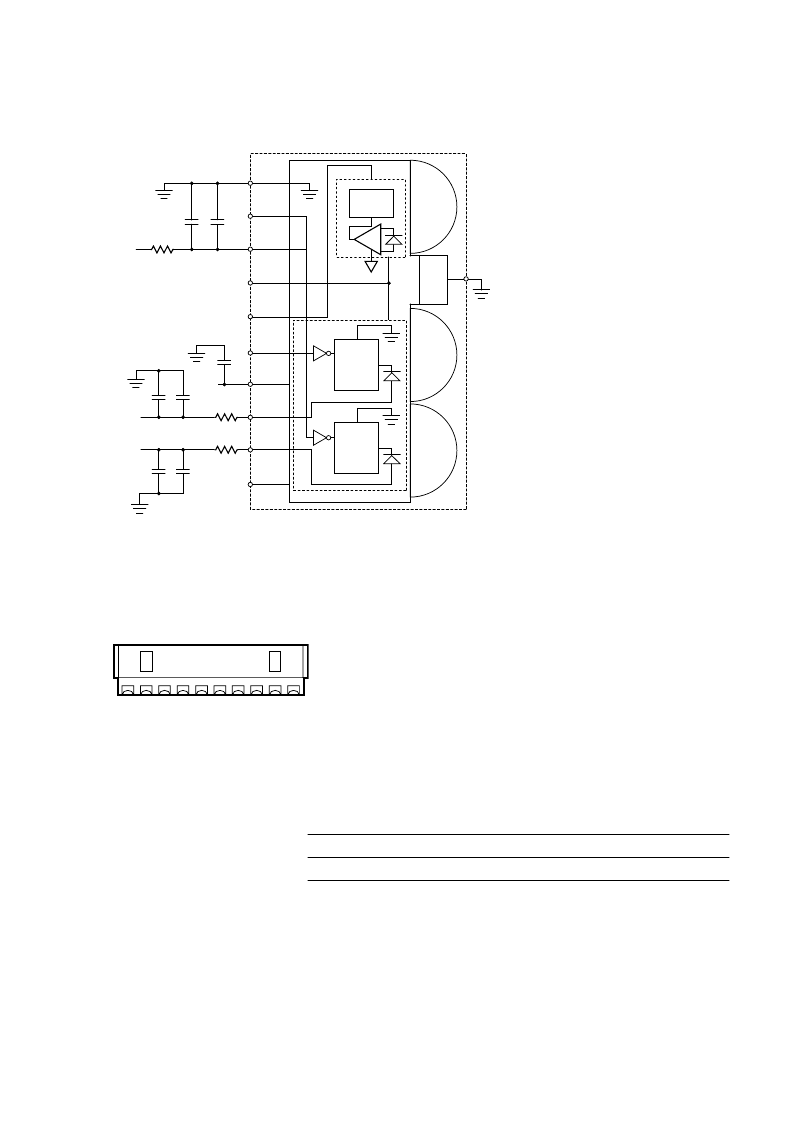

Figure 1. Functional block diagram of HSDL-3020.
Figure 2. Rear view diagram with pinout.
Order Information
Part Number
Packaging Type
Package
Quantity
HSDL-3020-021
Tape and Reel
Front Option
2500
Marking Information
The unit is marked with “7YWLL” on the shield
Y = Year
W = Work week
LL = Lot information
Application Support Information
The Application Engineering
Group is available to assist you
with the application design
associated with HSDL-3020
infrared transceiver module.
You can contact them through
your local sales representatives
for additional details.
R3
CX6
CX7
RC_LEDC
1
RC VLED
S
RC LED
DRIVER
IOV
CC
IOV
CC
CX4
4
TxD_IR
5
RC_LEDA
2
R2
R1
CX3
CX5
IR VLED
CX1
CX2
V
CC
IR LED
DRIVER
Rx PULSE
SHAPER
IR_LEDA
3
RxD
6
SD
7
V
CC
8
TxD_RC
9
GND
10
10
8
9
7
6
5
4
3
2
1
