G3H/G3HD
4

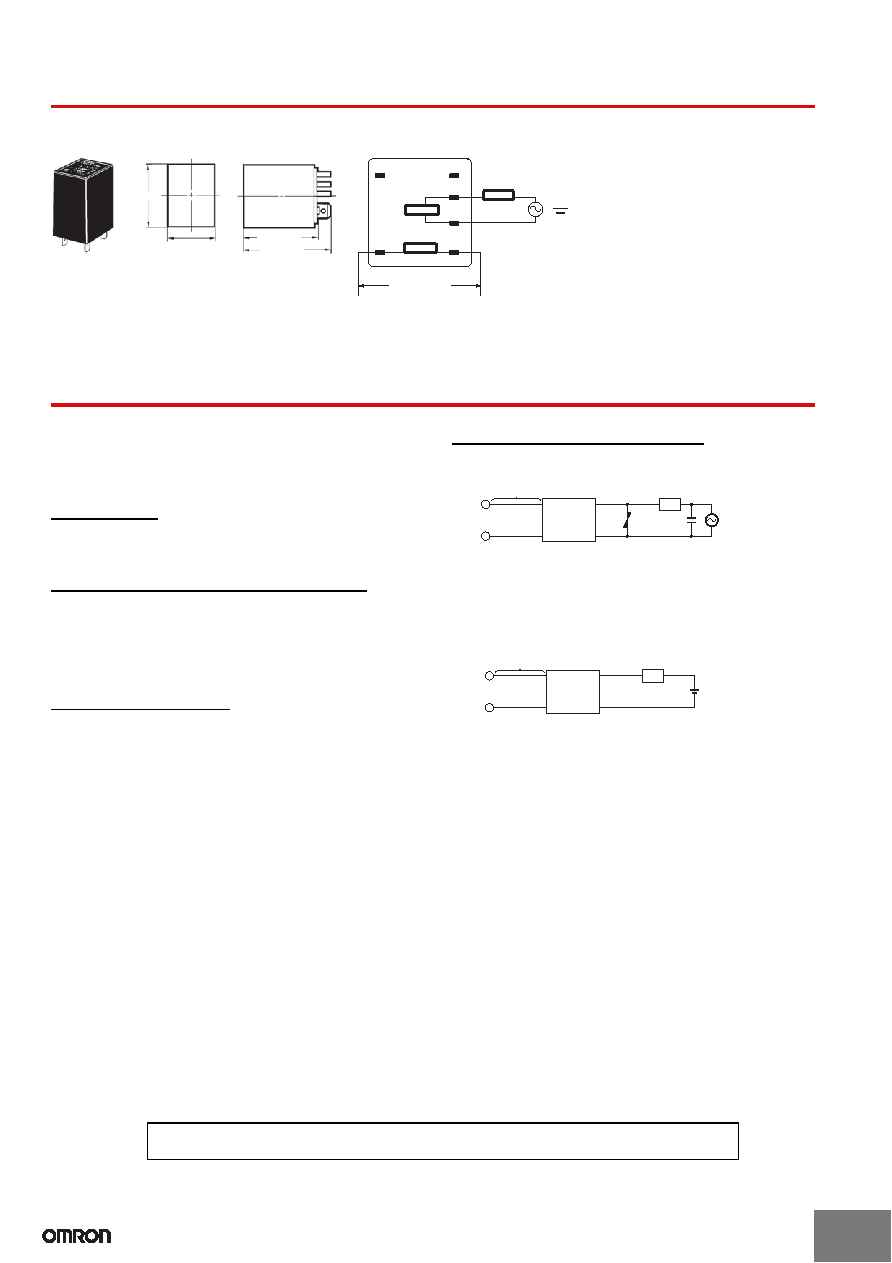

Dimensions
Note: All units are in millimeters unless otherwise indicated.
Safety Precautions
■ Precautions for Correct Use
Please observe the following precautions to prevent failure to
operate, malfunction, or undesirable effect on product performance.
Connection
The SSR for DC switching use can connect to a load regardless of
the polarity of the positive and negative output terminals.
Close Mounting of Multiple Relays
If multiple Relays are mounted side by side, be aware that the outer
wall of each SSR works as a heat sink.
The SSR casing serves to dissipate heat. Install the Relays so that
they are adequately ventilated. If poor ventilation is unavoidable,
reduce the load current by half.
Protective Terminal
No overvoltage absorption element is built in. (The G3HD-202SN
has a built-in varistor.) Be sure to connect an overvoltage absorption
element when using the G3H or G3HD with an inductive load.
EMC Directive Compliance
1. AC-switching models comply with EMC Directives under the
following conditions ("-VD" models only).
2. DC-switching models comply with EMC Directives under the
following conditions ("-VD" models only).
1
3
5
7
2
4(+)
6(
)
8
+
+
(+)
(
)
(
)
Load
Input voltage
2. The coil has no polarity.
3. The load is possible to connect
either + side or - side.
28 max.
21.5 max.
36.5 max.
42.5 max.
(Bottom View)
Input
Note: 1. The plus and minus symbols
shown in the parentheses
are for DC loads.
Load power
supply
Varistor
Varistor: 470 V, 0.6 W
Film capacitor: 1
F, 250 VAC
Output
Input
G3H-VD
Load
Less than 3 m
Film Capacitor
Connect a varistor between the output terminals.
Connect a film capacitor to the load power supply.
The input cable must be less than 3 m.
Output
Input
G3HD-VD
Load
Less than 10 m
The input cable must be less than 10 m.
In the interest of product improvement, specifications are subject to change without notice.
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
