參數資料
型號： FIN1047MTC
廠商： FAIRCHILD SEMICONDUCTOR CORP
元件分類： 通用總線功能
英文描述： 3.3V LVDS 4-Bit Flow-Through
中文描述： QUAD LINE DRIVER, PDSO16
封裝： 4.40 MM, MO-153, TSSOP-16
文件頁數： 1/9頁
文件大?。?/td> 315K
代理商： FIN1047MTC
2003 Fairchild Semiconductor Corporation
DS500589
www.fairchildsemi.com
June 2001
Revised August 2003
F
FIN1047
3.3V LVDS 4-Bit Flow-Through
High Speed Differential Driver
General Description
This quad driver is designed for high speed interconnects
utilizing Low Voltage Differential Signaling (LVDS) technol-
ogy. The driver translates LVTTL signal levels to LVDS lev-
els with a typical differential output swing of 350mV which
provides low EMI at ultra low power dissipation even at
high frequencies. This device is ideal for high speed trans-
fer of clock and data.
The FIN1047 can be paired with its companion receiver,
the FIN1048, or any other LVDS receiver.
Features
I
Greater than 400Mbs data rate
I
Flow-through pinout simplifies PCB layout
I
3.3V power supply operation
I
0.4 ns maximum differential pulse skew
I
1.7 ns maximum propagation delay
I
Low power dissipation
I
Power-Off protection
I
Meets or exceeds the TIA/EIA-644 LVDS standard
I
Pin compatible with equivalent RS-422 and LVPECL
devices
I
16-Lead SOIC and TSSOP packages save space
Ordering Code:
Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.

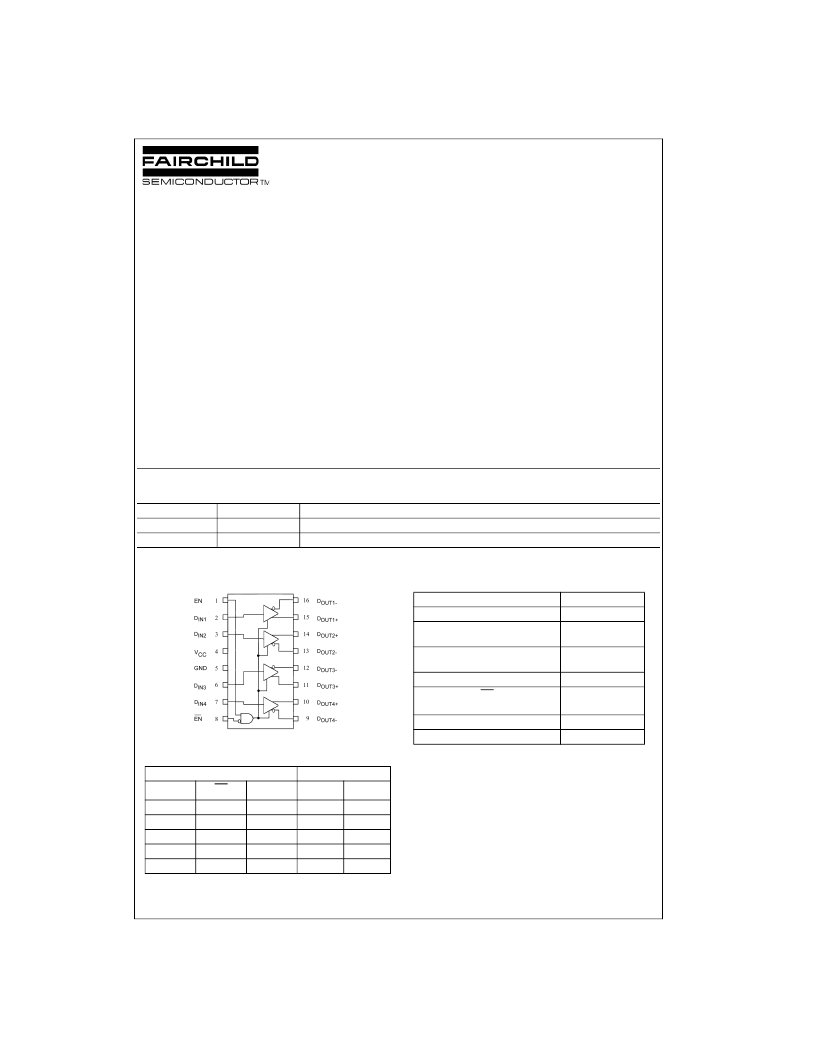

Connection Diagram
Truth Table
H
=
HIGH Logic Level
X
=
Don’t Care
L
=
LOW Logic Level
Z
=
High Impedance
Pin Descriptions
Order Number
FIN1047M
FIN1047MTC
Package Number
M16A
MTC16
Package Description
16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" Narrow
16-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
Inputs
Outputs
EN
H
H
H
X
EN
D
IN
H
L
OPEN
X
X
D
OUT
+
H
L
L
Z
Z
D
OUT
L
H
H
Z
Z
L or OPEN
L or OPEN
L or OPEN
H
X
L or OPEN
Pin Name
Description
LVTTL Data Inputs
D
IN1
, D
IN2
, D
IN3
, D
IN4
D
OUT1
+
, D
OUT2
+
, D
OUT3
+
, D
OUT4
+
Non-Inverting
Driver Outputs
D
OUT1
, D
OUT2
, D
OUT3
, D
OUT4
Inverting
Driver Outputs
Driver Enable Pin
EN
EN
Inverting Driver
Enable Pin
Power Supply
Ground
V
CC
GND
