FAN8732G/FAN8732BG/FAN8732CG
13

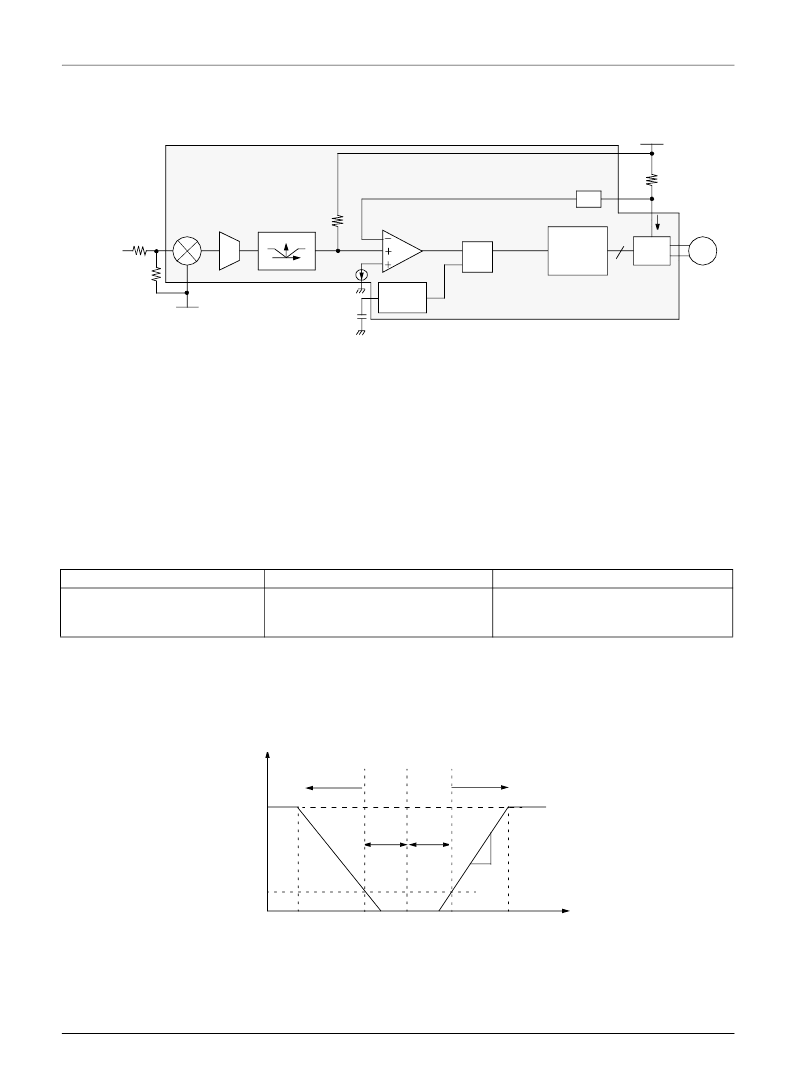

2. Torque Control & Output Current Control Of Sled Motor(2-phase Step Motor)
1) By amplifying the voltage difference between V
REF
and IN4(or IN5) from Servo IC(or DSP), the Torque AMP produces
the input voltage(V
AMP
) which is input current command.
2) The output current (I
O
) is converted into the voltage (V
CS
) through the sense resistor (R
CS
) and compared with the V
AMP
.
3) The clock generator has the RS latch set periodically, this makes output driver on state and when the V
CS
and the V
AMP
is
equal the state becomes off.
4) By the negative feedback loop, the sensed output voltage V
CS
equals to the V
AMP
.
5) To avoid output upper and lower transistor’s short through, switch trick is needed. Turn on delay time is 1usec, turn off
delay time is 2usec and the phase delay time, when the current direction is changed, is 3usec.
6) The gain and limit current are calculated as below table.(Gvo=1[V/V])
8) The range of the torque voltage is as shown below when Rcs=0.5
,
R
EXT1
=0 and R
EXT2
=inf.
Torque limit current
Input/Output gain[A/V]
Remark
is gain scaler
+-
Torque AMP
V
REF
IN4(or IN5)
Driver
M
Rcs
Vcs
+
-
Io
PVCC3
V
AMP
+
-
LPF
R
S
Q
Clock
Generator
R
EXT1
R
EXT2
Drive Logic
Inside IC
I
OMAX
4
----------
REXT2
---------------------+
-------------
REXT2
---------------------+
Forward
Dead
zone+
Dead
zone-
Reverse
Current
[A]
0
IN4/IN5-V
REF
I
limit
40mV
-40mV
G
IO
=G
VO
/ R
CS
