FAN8727
15

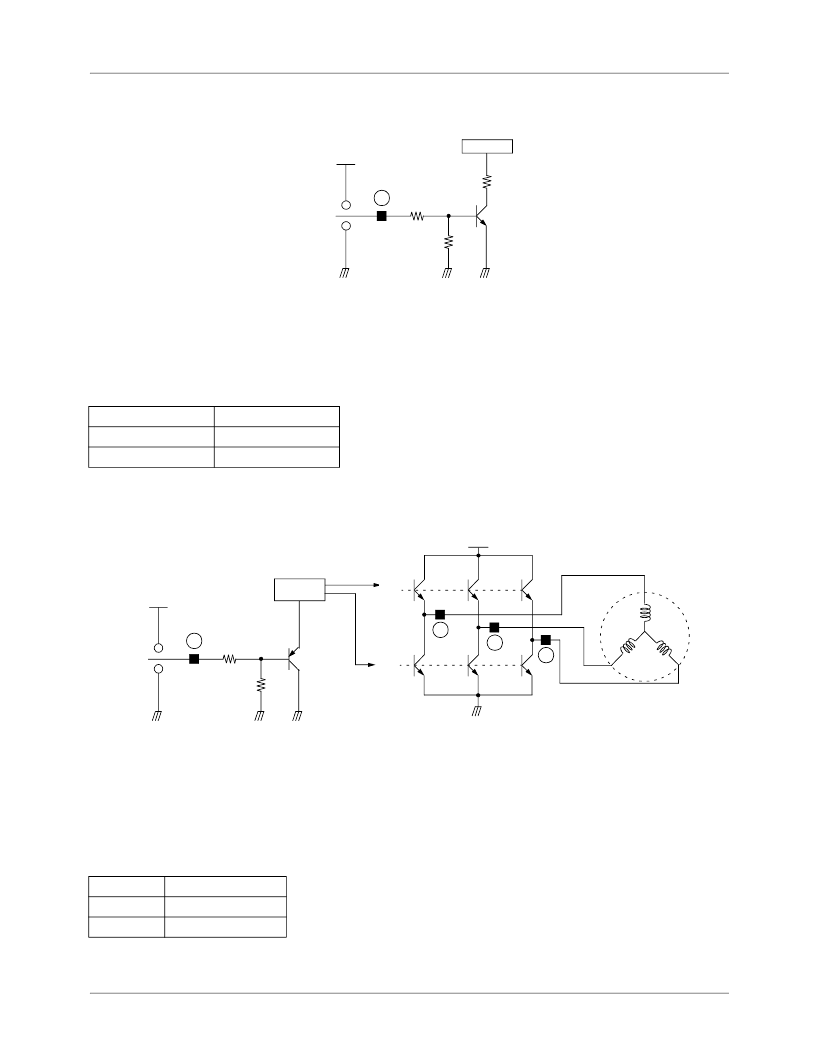

4. Power Save Function
- This function block operates the power saving function.
- The power save circuit is activated by operating TR Q1.
- When the SS (Start/Stop) pin 10 is high (V
CC
), the TR Q1 is turned on so that the bias circuit is enabled. On the other
hand, when the SS (Start/Stop) pin 10 is Open or Low (GND), the TR Q1 is turned off so that the bias circuit is disabled.
- The power save operation controlled by SS (pin 10) input conditions is as follows;
5. Short Brake Function
When the pick-up part moves from the inner to the outer spindle of the MD, the brake function of the reverse voltage is com-
monly employed to rate the rotational velocity of the spindle motor.However, if the spindle motor rotates rapidly, the brake
function of the reverse voltage may produce too much heat at the drive IC.
To remove these shortcomings and to enhance efficiency, the short brake function is added to FAN8727. When the short brake
function is active, all upper Power transistors are turned off and the lower Power transistors turned on, so as to reduce the rota-
tional velocity of the motor. The short brake operation controlled by SB (pin 12), and the inputs conditions are as follows.
Pin#10
HIGH
OPEN/LOW
FAN8727
START
STOP
Pin#12
HIGH
LOW
SHORT BRAKE
ON
OFF
10
V
CC
Start
Stop
12K
30K
Q1
100k
Bias block
14
15
16
MOTOR
OFF
ON
12
V
CC
ON
OFF
80K
1K
Q1
Drive logic
V
M
