FAN8725 (KA3025)
12

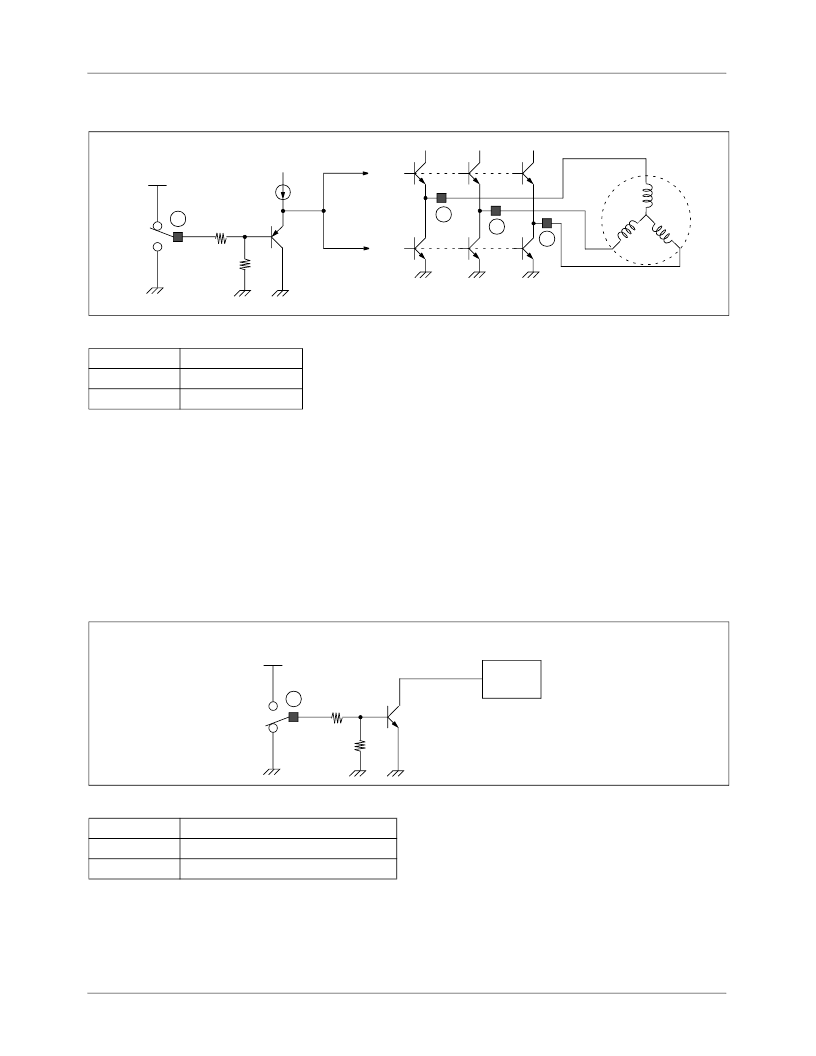

2. SHORT BRAKE
When the pick-up mechanism moves from the inner to the outer spindle of the CD, the Brake function of the reverse voltage is
commonly employed to decrease the rotating velocity of the Spindle Motor.
However, if the Spindle Motor rotates rapidly, the Brake function of the reverse voltage may produce much heat at the Drive
IC.
To enhance the braking efficiency, the Short Brake function is added to FAN8725. When the Short Brake function is activated,
all upper Power TRs turn off and all lower Power TRs turn on, so as to make the rotating velocity of the motor slow down. But
FG and DIR functions continue to operate normally.
3. POWER SAVE
When PowerSave(PS) function is activated, the chip is deactivated.
Pin # 43
HIGH
LOW
Short Brake
ON
OFF
Pin # 44
HIGH
LOW
Power Save
Motor Drive Ouput Activated
Sleep mode
43
Vcc
ON
OFF
20K
1K
MOTOR
OFF
ON
13
14
15
44
Vcc
Start
Stop
30K
40K
IC bias
