Original specifications created by Sharp.
7
Panelview (503) 690-2460 www.whiteedc.com
Panelview is a subsidiary of White Electronic Designs Corporation
ENH104V1-350/450
Panelview
Enhancing the Vision

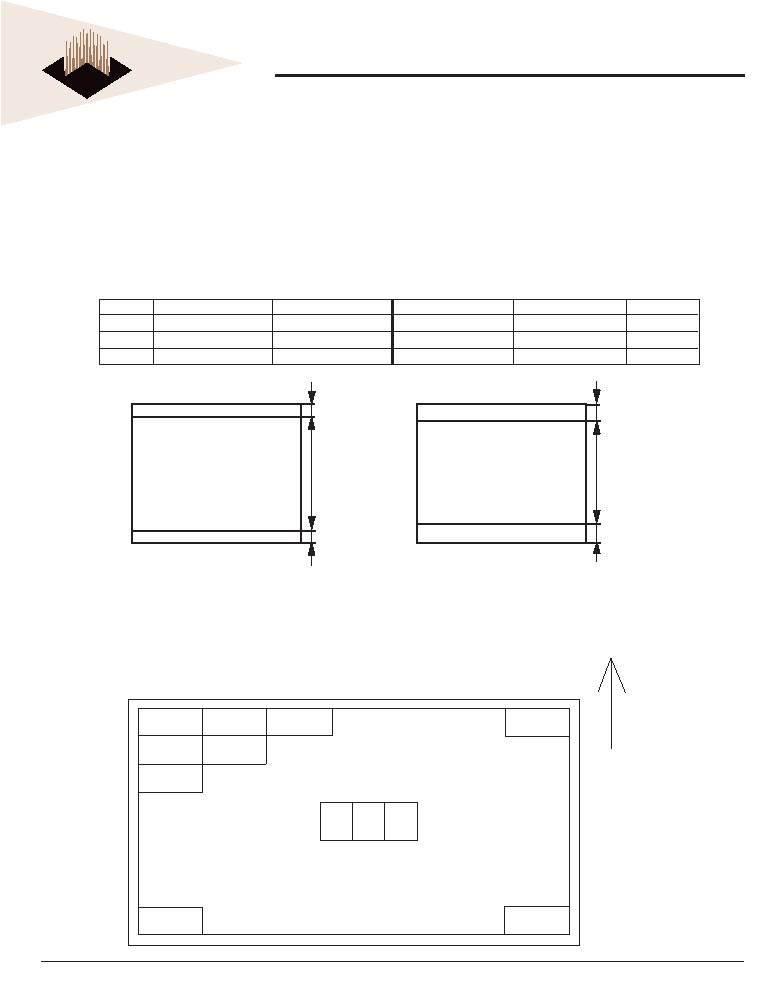

Vertical Display Position
The vertical display position is automatically centered
in the active area at each mode of VGA, 480-, 400-, and
350-line mode. Each mode is selected depending on
the polarity of the synchronous signals described in
Note 1, page 2.
In each mode, the data of TVn is displayed at the top line
of the active area. And the display position will be
centered on the screen like the following figure when
the period of vertical synchronous signal, TV, is typical
value.
In 400-, and 350-line mode, the data in the vertical data
invalid period is also displayed. Therefore, inputting all
data 0 is recommended during vertical data invalid
period. ENAB signal has no relation to the vertical display
position.
mode
V-data start (TVs)
V-data period (TVd)
V-display start (TVn)
V-display period
Unit
480
34
480
34
480
line
400
34
400
443-TV
480
line
350
61
350
445-TV
480
line
data invalid period
data period
40 lines
400 lines
65 lines
350 lines
350 line mode (TV=449)
400 line mode (TV=449)
Input Data Signals and Display Position on the screen
Display position of input data (480 line mode)
(H, V)
D1, DH1
D1, DH2
D1, DH3
D2, DH1
D2, DH2
D3, DH1
D1, DH480
D640, DH1
D640, DH480
R
G
B
U P
