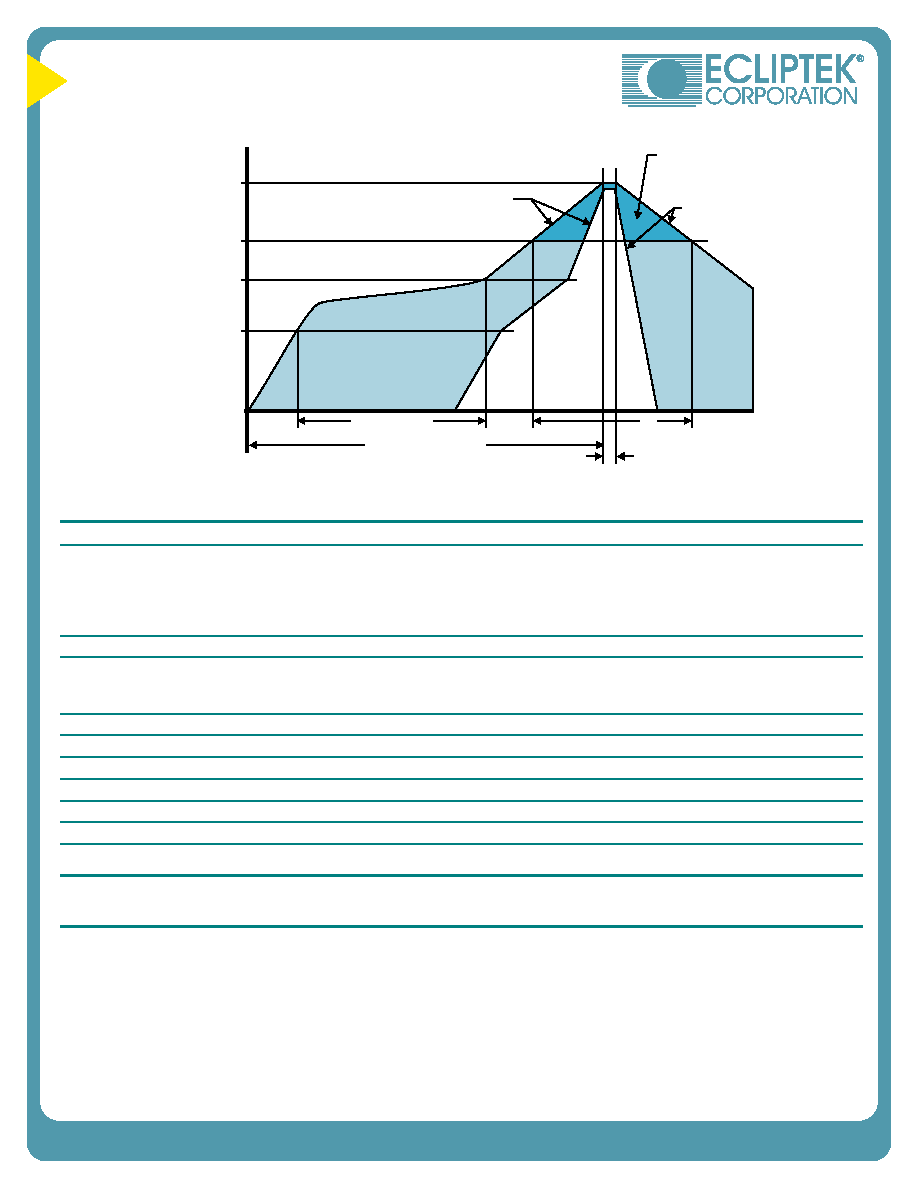

Recommended Solder Reflow Methods
EMK21G2H-14.7456M TR
Low Temperature Infrared/Convection 240°C
TS MAX to TL (Ramp-up Rate)
5°C/second Maximum
Preheat
- Temperature Minimum (TS MIN)
N/A
- Temperature Typical (TS TYP)
150°C
- Temperature Maximum (TS MAX)
N/A
- Time (tS MIN)
60 - 120 Seconds
Ramp-up Rate (TL to TP)
5°C/second Maximum
Time Maintained Above:
- Temperature (TL)
150°C
- Time (tL)
200 Seconds Maximum
Peak Temperature (TP)
240°C Maximum
Target Peak Temperature (TP Target)
240°C Maximum 1 Time / 230°C Maximum 2 Times
Time within 5°C of actual peak (tp)
10 seconds Maximum 2 Times / 80 seconds Maximum 1 Time
Ramp-down Rate
5°C/second Maximum
Time 25°C to Peak Temperature (t)
N/A
Moisture Sensitivity Level
Level 1
Low Temperature Manual Soldering
185°C Maximum for 10 seconds Maximum, 2 times Maximum.
High Temperature Manual Soldering
260°C Maximum for 5 seconds Maximum, 2 times Maximum.
www.ecliptek.com | Specification Subject to Change Without Notice | Rev J 8/14/2010 | Page 6 of 6
