EVERLIGHT ELECTRONICS CO.,LTD.
EHP-A18LS/CT01C-P03
Everlight Electronics Co., Ltd.
http://www.everlight.com
Rev. 1
Page: 10 of 10
Device No. : DHE-0000041
Prepared date: Oct. 15, 2008
Prepared by: Brady Chou
4. Soldering Condition
i.

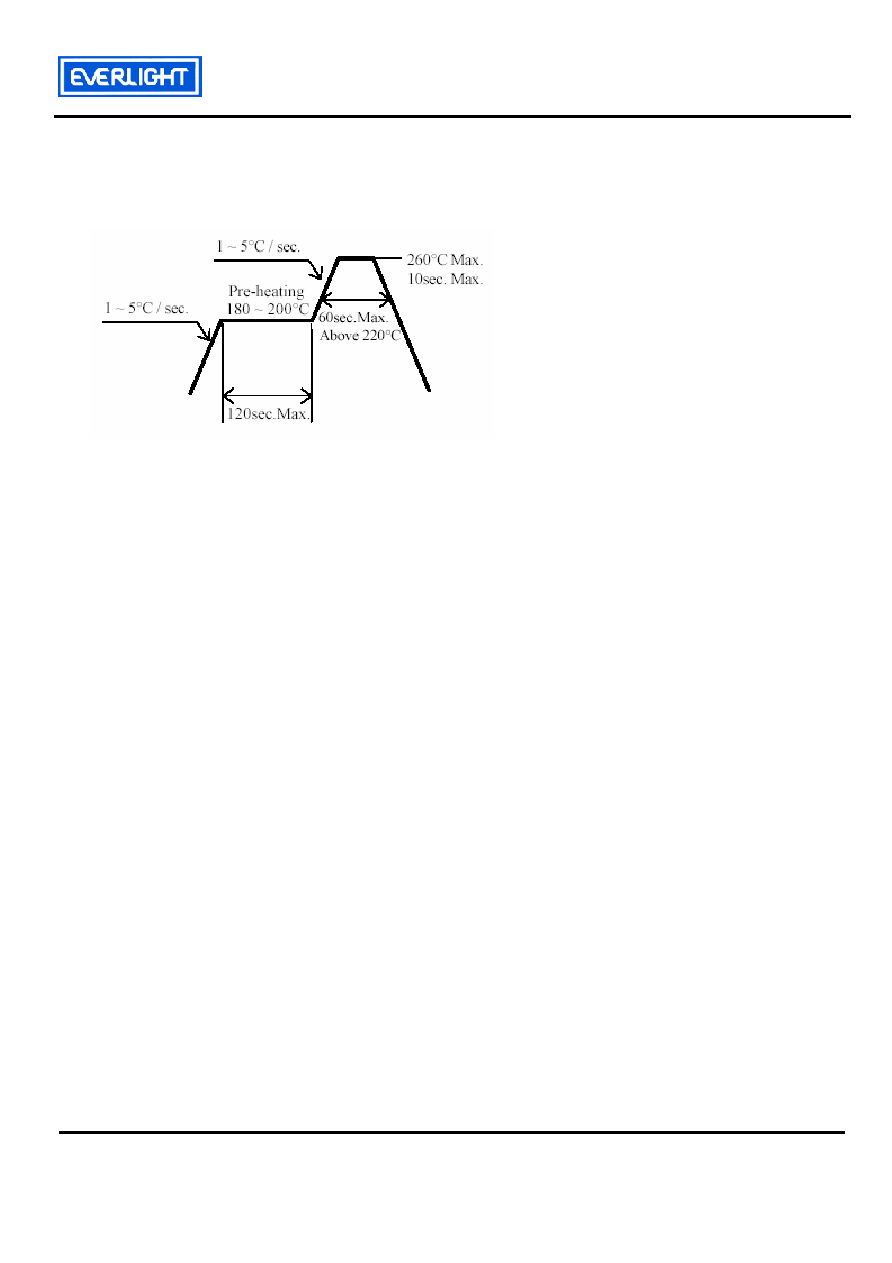

Lead reflow soldering temperature profile
ii.
Reflow soldering should not be done more than two times.
iii.
While soldering, do not put stress on the LEDs during heating.
iv.
After soldering, do not warp the circuit board
5. Soldering Iron
i.
For prototype builds or small series production runs it is possible to place and solder the LED by
hand.
ii.
Dispensing thermal conductive glue or grease on the substrates and follow its curing spec. Press
LED housing to closely connect LED and substrate.
iii.
It is recommended to hand solder the leads with a solder tip temperature of 280°C for less than 3
seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more
intervals, and do soldering of each terminal.
iv.
Be careful because the damage of the product is often started at the time of the hand solder.
