| 型號： | E2UFA18-3.93216M-I2TR |
| 廠商： | ECLIPTEK CORP |
| 元件分類： | 晶體 |
| 英文描述： | QUARTZ CRYSTAL RESONATOR, 3.93216 MHz |
| 封裝： | ROHS COMPLIANT, RESISTANCE WELDED PACKAGE-2 |
| 文件頁數： | 1/5頁 |
| 文件大?。?/td> | 114K |
| 代理商： | E2UFA18-3.93216M-I2TR |
Pb
RoHS

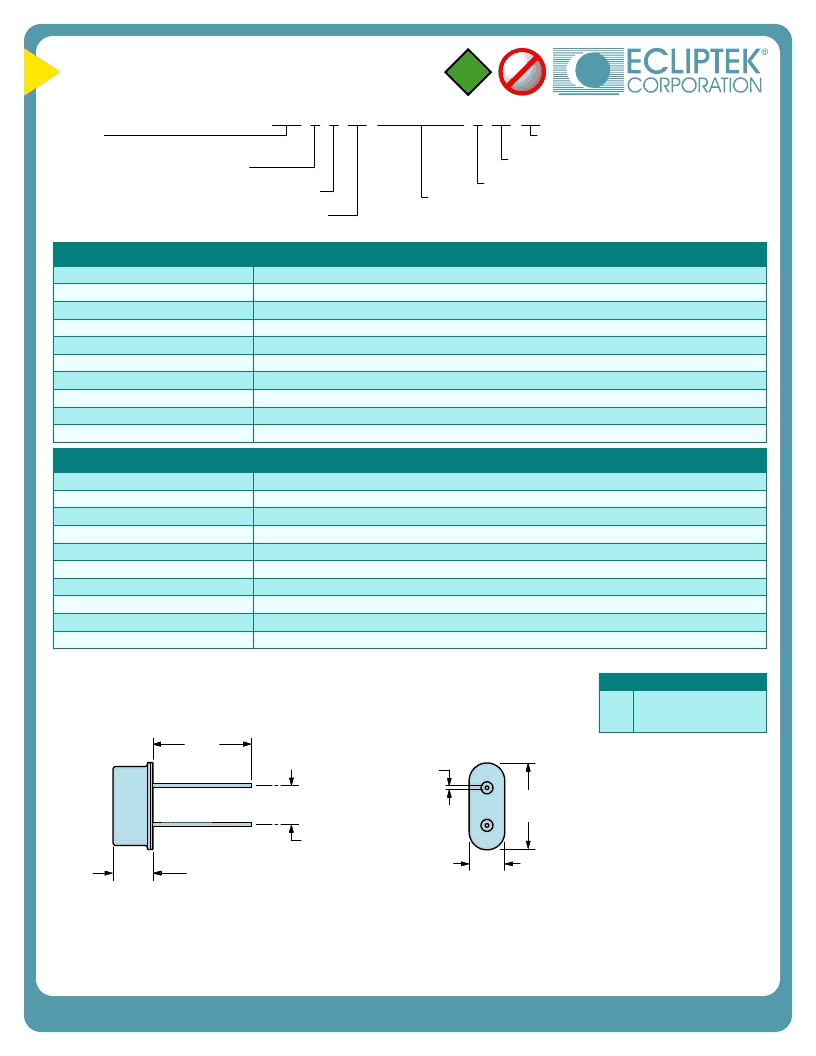

E2UFA18-3.93216M-I2 TR
E2U F A 18 -3.93216M - I2 TR
Series
RoHS Compliant (Pb-free) Resistance Welded
HC-49/US Crystal
Frequency Tolerance/Stability
±30ppm at 25°C, ±50ppm over -40°C to +85°C
Mode of Operation
AT-Cut Fundamental
Load Capacitance
18pF Parallel Resonant
Packaging Options
Tape & Reel
Insulator Tab
Mylar Insulator Tab
Value Added Option Prefix
Nominal Frequency
3.93216MHz
ELECTRICAL SPECIFICATIONS
Nominal Frequency
Frequency Tolerance/Stability
Aging at 25°C
Load Capacitance
Shunt Capacitance (C0)
Equivalent Series Resistance
Mode of Operation
Drive Level
Storage Temperature Range
Insulation Resistance
3.93216MHz
±30ppm at 25°C, ±50ppm over -40°C to +85°C
±5ppm/year Maximum
18pF Parallel Resonant
7pF Maximum
200 Ohms Maximum
AT-Cut Fundamental
1mWatt Maximum
-40°C to +125°C
500 Megaohms Minimum at 100Vdc
ENVIRONMENTAL & MECHANICAL SPECIFICATIONS
Fine Leak Test
MIL-STD-883, Method 1014 Condition A
Gross Leak Test
MIL-STD-883, Method 1014 Condition C
Lead Integrity
MIL-STD-883, Method 2004
Lead Termination
Sn 2μm - 6μm
Mechanical Shock
MIL-STD-202, Method 213 Condition C
Resistance to Soldering Heat
MIL-STD-202, Method 210
Resistance to Solvents
MIL-STD-202, Method 215
Solderability
MIL-STD-883, Method 2003
Temperature Cycling
MIL-STD-883, Method 1010
Vibration
MIL-STD-883, Method 2007 Condition A
MECHANICAL DIMENSIONS (all dimensions in millimeters)
6.35
MIN
3.68 MAX
4.88 ±0.20
DIA 0.457
±0.051(X2)
4.70
MAX
11.18
MAX
LINE MARKING
1
E3.9321M
E=Ecliptek Designator
M=MHz
www.ecliptek.com | Specification Subject to Change Without Notice | Rev E 8/12/2010 | Page 1 of 5
