GENERAL DESCRIPTION
The DS1307 serial real-time clock (RTC) is a low-
power, full binary-coded decimal (BCD) clock/calendar
plus 56 bytes of NV SRAM. Address and data are
transferred serially through an I2C, bidirectional bus.
The clock/calendar provides seconds, minutes, hours,
day, date, month, and year information. The end of
the month date is automatically adjusted for months
with fewer than 31 days, including corrections for leap
year. The clock operates in either the 24-hour or 12-
hour format with AM/PM indicator. The DS1307 has a
built-in power-sense circuit that detects power failures
and automatically switches to the backup supply.
Timekeeping operation continues while the part
operates from the backup supply.

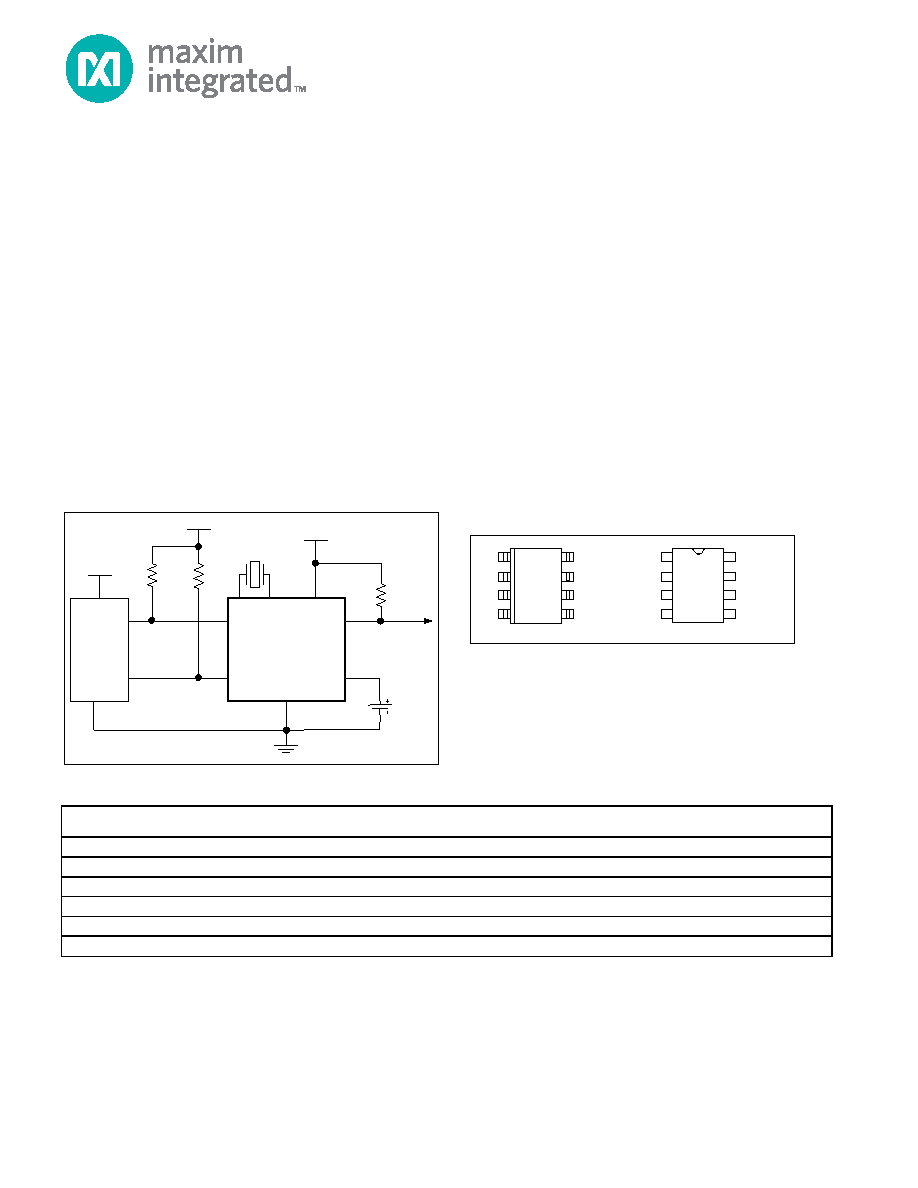

TYPICAL OPERATING CIRCUIT
FEATURES
Real-Time Clock (RTC) Counts Seconds,
Minutes, Hours, Date of the Month, Month, Day of
the week, and Year with Leap-Year
Compensation Valid Up to 2100
56-Byte, Battery-Backed, General-Purpose RAM
with Unlimited Writes
I2C Serial Interface
Programmable Square-Wave Output Signal
Automatic Power-Fail Detect and Switch Circuitry
Consumes Less than 500nA in Battery-Backup
Mode with Oscillator Running
Optional Industrial Temperature Range:
-40°C to +85°C
Available in 8-Pin Plastic DIP or SO
Underwriters Laboratories (UL) Recognized
PIN CONFIGURATIONS
V
CC
SCL
SDA
X1
X2
V
BAT
GND
SQW/OUT
V
CC
SCL
SDA
X1
X2
V
BAT
GND
SQW/OUT
PDIP (300 mils)
SO (150 mils)
TOP VIEW
ORDERING INFORMATION
PART
TEMP RANGE
VOLTAGE (V) PIN-PACKAGE
TOP MARK*
DS1307+
0°C to +70°C
5.0
8 PDIP (300 mils)
DS1307
DS1307N+
-40°C to +85°C
5.0
8 PDIP (300 mils)
DS1307N
DS1307Z+
0°C to +70°C
5.0
8 SO (150 mils)
DS1307
DS1307ZN+
-40°C to +85°C
5.0
8 SO (150 mils)
DS1307N
DS1307Z+T&R
0°C to +70°C
5.0
8 SO (150 mils) Tape and Reel
DS1307
DS1307ZN+T&R
-40°C to +85°C
5.0
8 SO (150 mils) Tape and Reel
DS1307N
+Denotes a lead-free/RoHS-compliant package.
*A “+” anywhere on the top mark indicates a lead-free package. An “N” anywhere on the top mark indicates an industrial temperature range
device.
DS130
CPU
VCC
SDA
SCL
GND
X2
X1
VCC
RPU
CRYSTAL
SQW/OUT
VBAT
RPU = tr/Cb
DS1307
64 x 8, Serial, I2C Real-Time Clock
