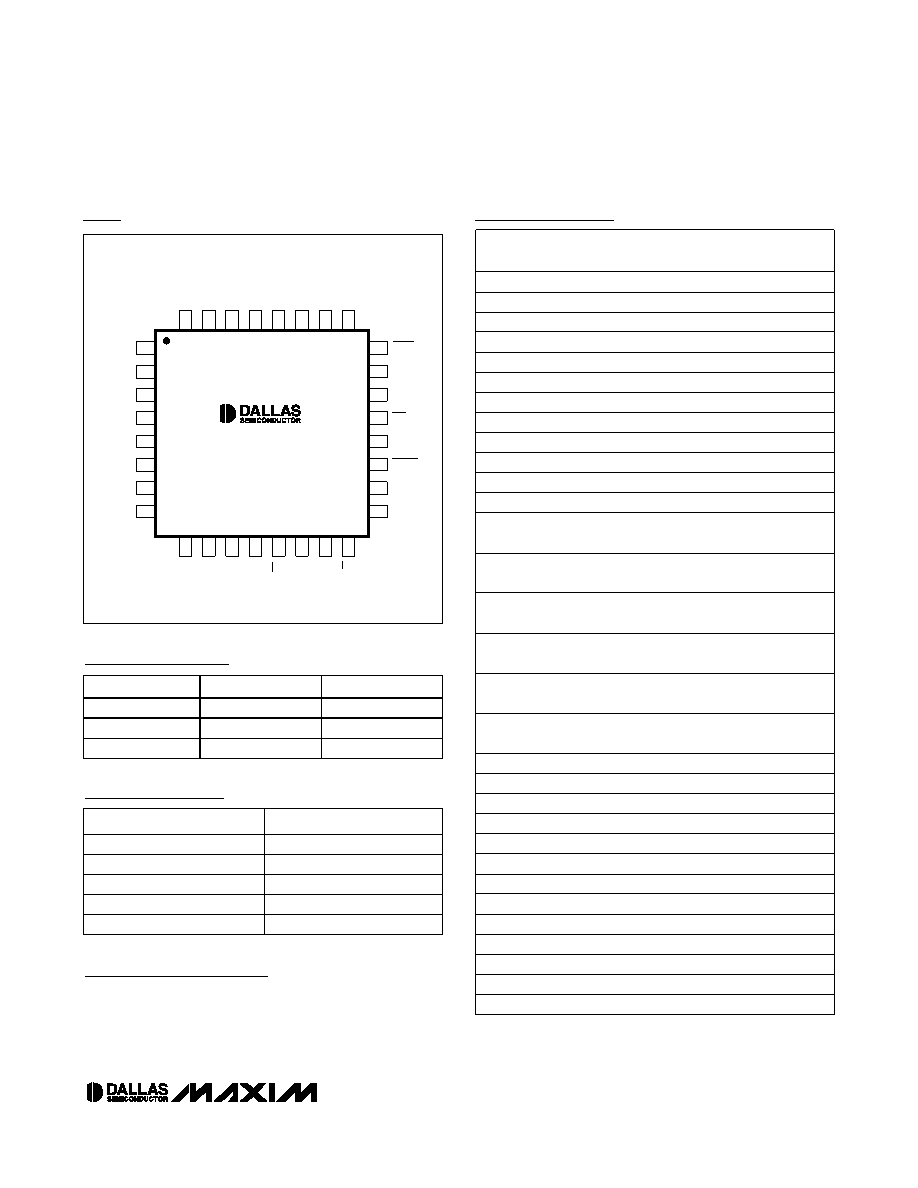

DS12885/DS12887/DS12887A/DS12C887/DS12C887A
Real-Time Clock
____________________________________________________________________
21
PACKAGE
THETA-JA (°C/W)
THETA-JC (°C/W)
PDIP
75
30
SO
105
22
PLCC
95
25
Thermal Information
PIN-PACKAGE
DOCUMENT NO.
24 SO (300 mils)
24 PDIP
24 EDIP
28 PLCC
32 TQFP
Package Information
Chip Information
TRANSISTOR COUNT: 17,000
PROCESS: CMOS
SUBSTRATE CONNECTED TO GROUND
TQFP
TOP VIEW
32
28
29
30
31
25
26
27
X2
X1
MOT
V
CC
N.C.
SQW
N.C.
10
13
15
14
16
11
12
9
AD6
AD7
N.C.
CS
GND
N.C.
AS
R/W
17
18
19
20
21
22
23 N.C.
24 RCLR
VBAT
IRQ
N.C.
RESET
DS
GND
2
3
4
5
6
7
8
AD5
AD4
N.C.
AD3
N.C.
AD2
AD1
1
AD0
DS12885T
Pin Configurations (continued)
Ordering Information
PART
TEMP RANGE
PIN-
PACKAGE
TOP
MARK*
DS12885
0°C to +70°C
24 PDIP
DS12885
DS12885+
0°C to +70°C
24 PDIP
DS12885
DS12885N
-40°C to +85°C
24 PDIP
DS12885
DS12885N+
-40°C to +85°C
24 PDIP
DS12885
DS12885Q
0°C to +70°C
28 PLCC
DS12885Q
DS12885Q+
0°C to +70°C
28 PLCC
DS12885Q
DS12885QN
-40°C to +85°C
28 PLCC
DS12885Q
DS12885QN+
-40°C to +85°C
28 PLCC
DS12885Q
DS12885Q/T&R
0°C to +70°C
28 PLCC
DS12885Q
DS12885Q+T&R
0°C to +70°C
28 PLCC
DS12885Q
DS12885QN/T&R
-40°C to +85°C
28 PLCC
DS12885Q
DS12885QN+T&R -40°C to +85°C
28 PLCC
DS12885Q
DS12885S
0°C to +70°C
24 SO
(300 mils)
DS12885S
DS12885S+
0°C to +70°C
24 SO
(300 mils)
DS12885S
DS12885SN
-40°C to +85°C
24 SO
(300 mils)
DS12885S
DS12885SN+
-40°C to +85°C
24 SO
(300 mils)
DS12885S
DS12885S/T&R
0°C to +70°C
24 SO
(300 mils)
DS12885S
DS12885S+T&R
0°C to +70°C
24 SO
(300 mils)
DS12885S
DS12885T
0°C to +70°C
32 TQFP
DS12885
DS12885T+
0°C to +70°C
32 TQFP
DS12885
DS12885TN
-40°C to +85°C
32 TQFP
DS12885
DS12885TN+
-40°C to +85°C
32 TQFP
DS12885
DS12885T/T&R
0°C to +70°C
32 TQFP
DS12885
DS12887
0°C to +70°C
24 EDIP
DS12887
DS12887+
0°C to +70°C
24 EDIP
DS12887
DS12887A
0°C to +70°C
24 EDIP
DS12887A
DS12887A+
0°C to +70°C
24 EDIP
DS12887A
DS12C887
0°C to +70°C
24 EDIP
DS12C887
DS12C887+
0°C to +70°C
24 EDIP
DS12C887
DS12C887A
0°C to +70°C
24 EDIP
DS12C887A
DS12C887A+
0°C to +70°C
24 EDIP
DS12C887A
+
Denotes a lead-free/RoHS-compliant device.
T&R = Tape-and-reel.
*A “+” anywhere on the top mark indicates a lead-free device,
and an “N” indicates an industrial temperature range device.
