參數資料
| 型號： | DF56-40P-0.3SD(51) |
| 元件分類： | 電路板相疊連接器 |
| 英文描述： | 40 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SURFACE MOUNT, PLUG |
| 文件頁數： | 6/11頁 |
| 文件大小： | 1733K |
| 代理商： | DF56-40P-0.3SD(51) |
4

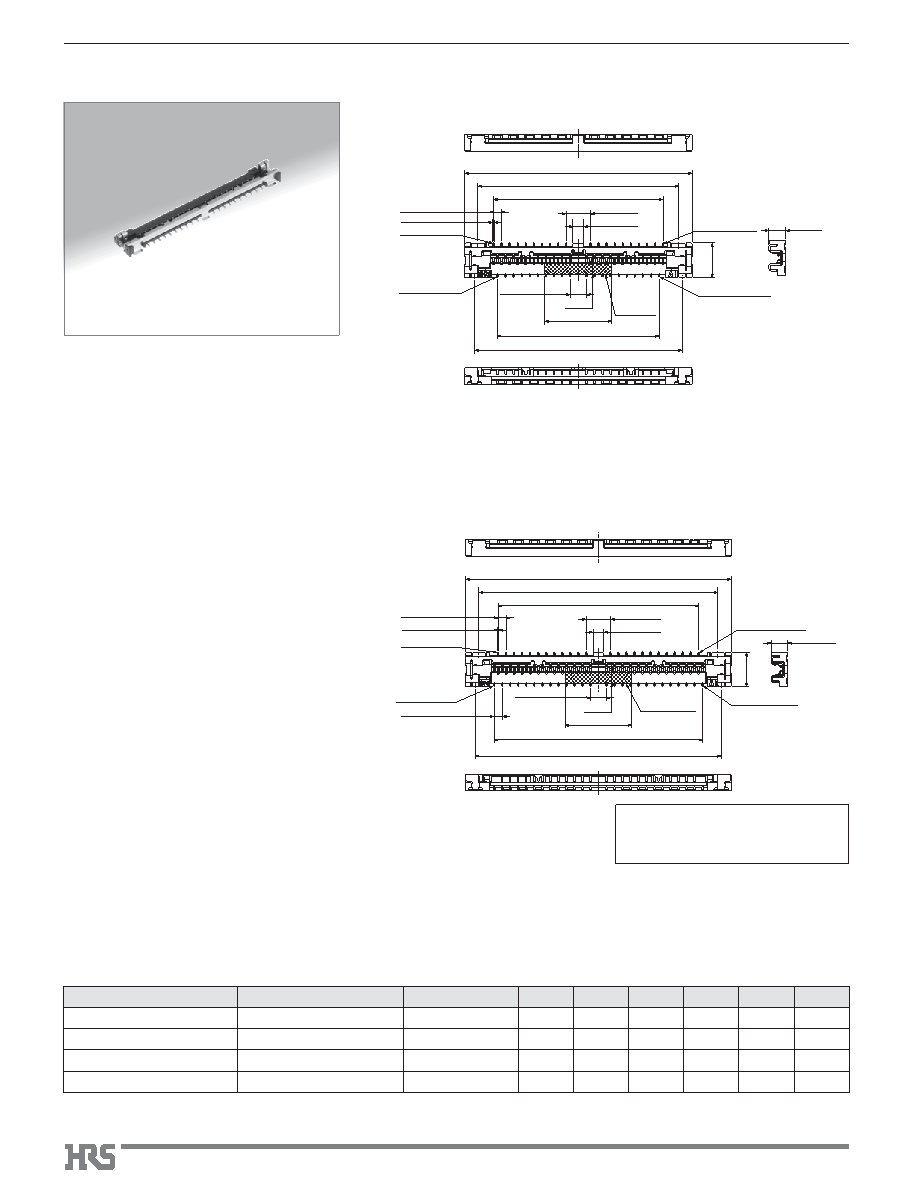

DF56 Series●0.3 mm Pitch, Vertical mating, Board-to-Fine Coaxial Cable Connectors
1.25±0.1
Contact No.n
2.6±0.1
Contact No.n-1
Vacuum
pick-up
area
A±0.1
B±0.1
E±0.1
F±0.1
C±0.1
1.8±0.05
0.8±0.05
(D)
(0.82)
1.2±0.05
Contact No.2
Contact No.1
P=0.6±0.05
t=0.1±0.015
■
Receptacles (SMT)
Unit : mm
Part Number
CL No.
Number of contacts
A
B
C
D
E
F
DF56-20S-0.3V(**)
Under planning
20
10.90
8.90
6.60
(5.00)
6.00
9.40
DF56-30S-0.3V(**)
Under planning
30
13.90
11.90
9.00
(5.00)
9.60
12.40
DF56-40S-0.3V(**)
662-5600-0-**
40
16.90
14.90
12.60
(5.00)
12.00
15.40
DF56-50S-0.3V(**)
662-5606-7-**
50
19.90
17.90
15.00
(5.00)
15.60
18.40
The position of contact No.1 is different depending on No. of positions.
Contact No.n-1
1.25±0.1
Contact No.n
2.6±0.1
Vacuum
pick-up area
A±0.1
B±0.1
E±0.1
F±0.1
C±0.1
0.8±0.05
1.8±0.05
(0.82)
(D)
1.2±0.05
P=0.6±0.05
t=0.1±0.015
Contact No.2
Contact No.1
P=0.6±0.05
●
20pos/40pos
●
30pos/50pos
[Specifications number] - * *, (* *)
(51) : Embossed tape packaging
(5,000 pieces per reel)
