參數資料
型號： DF36-25S-0.4V(51)
元件分類： 電路板相疊連接器
英文描述： 25 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT, RECEPTACLE
封裝： ROHS COMPLIANT
文件頁數： 4/13頁
文件大?。?/td> 606K
代理商： DF36-25S-0.4V(51)
12

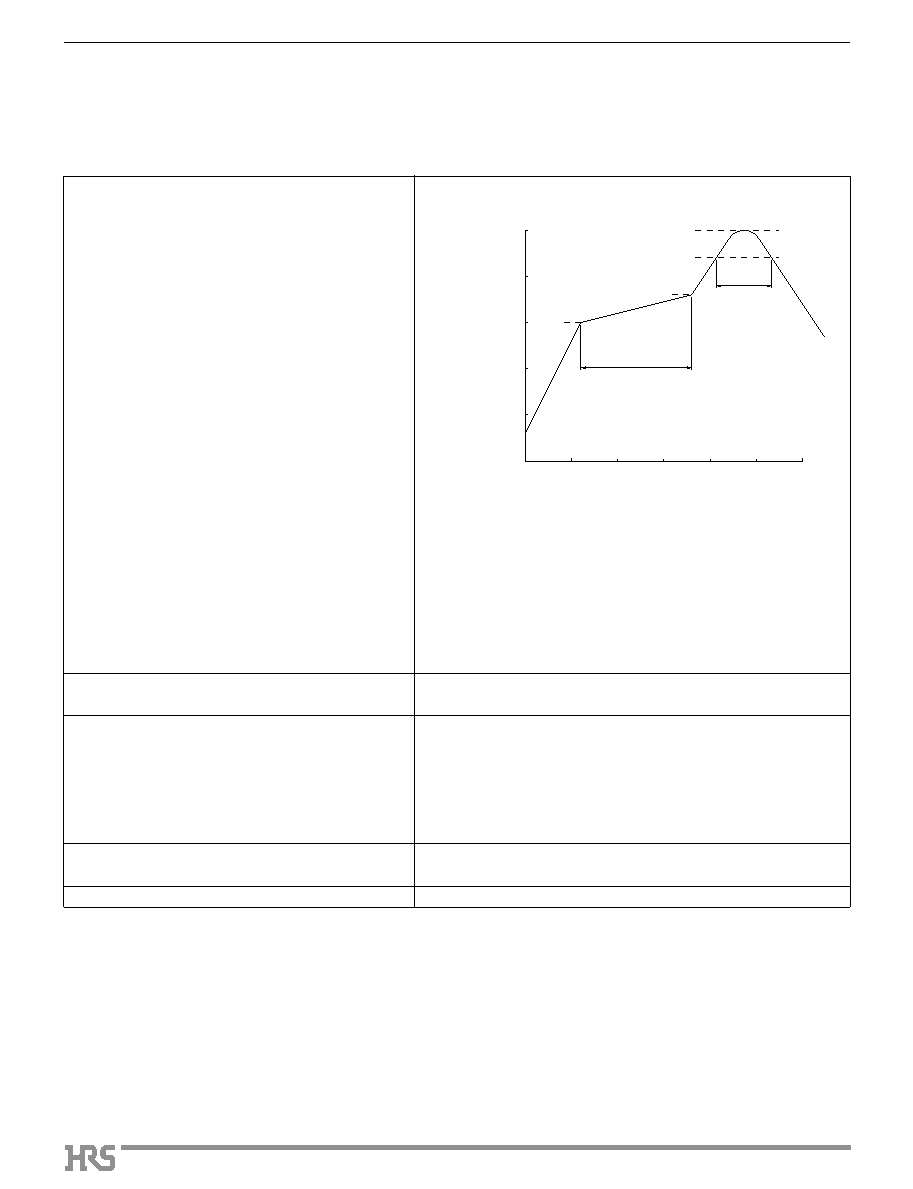

DF36 Seriesq0.4 mm Pitch, 1.5 mm Mated Height, Board-to-Fine Coaxial Cable Connectors
sExtraction tool
For details about the extraction tool, please contact your Hirose sales representative.
sUsage Recommendations
Refer to “Nylon Connector Use Handbook”.
Maximum of 0.02 mm at the connector center, with both ends of the
connector as reference points.
Standard Thickness: 0.1 mm
Open area ratios: Lead terminal: 90%
Ground terminal: 100%
Space-saving Thickness: 0.1 mm
Open area ratios: Lead terminal: 90%
Ground terminal: 90%
Manual soldering: 350 for 3 seconds
Do NOT use flux compound when manual soldering.
Solder composition: Paste, 96.5%Sn/3.0%Ag/0.5%Cu
Note 1: Up to 2 cycles of Reflow soldering are possible under the
same conditions, provided that there is a return
to normal temperature between the first and second cycle.
Note 2: The temperature profile indicates the board surface
temperature at the point of contacts with the connector
terminals.
50
60sec max
100
150
200
250
Time (sec.)
Temperature ()
0
100
150
200
250
50
Room
temperature
300
90 to 120sec
180
250
220
150
1.Recommended temperature profile
2.Recommended manual soldering
3.Recommended screen thickness and open
area ratio (Pattern area ratio)
4.Board warpage
5.Cleaning conditions
相關PDF資料
PDF描述
DF36A-25S-0.4V(51) 25 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT, RECEPTACLE
DF36A-30S-0.4V(51) 30 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT, RECEPTACLE
DF36A-40S-0.4V(51) 40 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT, RECEPTACLE
DF36A-45S-0.4V(51) 45 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT, RECEPTACLE
DF49-20P-0.4SD(51) 20 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SURFACE MOUNT, PLUG
相關代理商/技術參數
參數描述
DF36-30P-0.4SD 功能描述:集管和線殼 30P COAX CABLE PLUG .4MM PITCH RoHS:否 產品種類:1.0MM Rectangular Connectors 產品類型:Headers - Pin Strip 系列:DF50 觸點類型:Pin (Male) 節距:1 mm 位置/觸點數量:16 排數:1 安裝風格:SMD/SMT 安裝角:Right 端接類型:Solder 外殼材料:Liquid Crystal Polymer (LCP) 觸點材料:Brass 觸點電鍍:Gold 制造商:Hirose Connector
DF36-30P-0.4SD(51) 功能描述:集管和線殼 RoHS:否 產品種類:1.0MM Rectangular Connectors 產品類型:Headers - Pin Strip 系列:DF50 觸點類型:Pin (Male) 節距:1 mm 位置/觸點數量:16 排數:1 安裝風格:SMD/SMT 安裝角:Right 端接類型:Solder 外殼材料:Liquid Crystal Polymer (LCP) 觸點材料:Brass 觸點電鍍:Gold 制造商:Hirose Connector
DF36-30P-0.4SD(55) 功能描述:集管和線殼 RoHS:否 產品種類:1.0MM Rectangular Connectors 產品類型:Headers - Pin Strip 系列:DF50 觸點類型:Pin (Male) 節距:1 mm 位置/觸點數量:16 排數:1 安裝風格:SMD/SMT 安裝角:Right 端接類型:Solder 外殼材料:Liquid Crystal Polymer (LCP) 觸點材料:Brass 觸點電鍍:Gold 制造商:Hirose Connector
DF36-40P-0.4SD 功能描述:集管和線殼 40P M CABLE PLUG SR COAXIAL STANDRD TYPE RoHS:否 產品種類:1.0MM Rectangular Connectors 產品類型:Headers - Pin Strip 系列:DF50 觸點類型:Pin (Male) 節距:1 mm 位置/觸點數量:16 排數:1 安裝風格:SMD/SMT 安裝角:Right 端接類型:Solder 外殼材料:Liquid Crystal Polymer (LCP) 觸點材料:Brass 觸點電鍍:Gold 制造商:Hirose Connector
DF36-40P-0.4SD(51) 功能描述:集管和線殼 40P COAX CABLE PLUG .4MM PITCH RoHS:否 產品種類:1.0MM Rectangular Connectors 產品類型:Headers - Pin Strip 系列:DF50 觸點類型:Pin (Male) 節距:1 mm 位置/觸點數量:16 排數:1 安裝風格:SMD/SMT 安裝角:Right 端接類型:Solder 外殼材料:Liquid Crystal Polymer (LCP) 觸點材料:Brass 觸點電鍍:Gold 制造商:Hirose Connector
