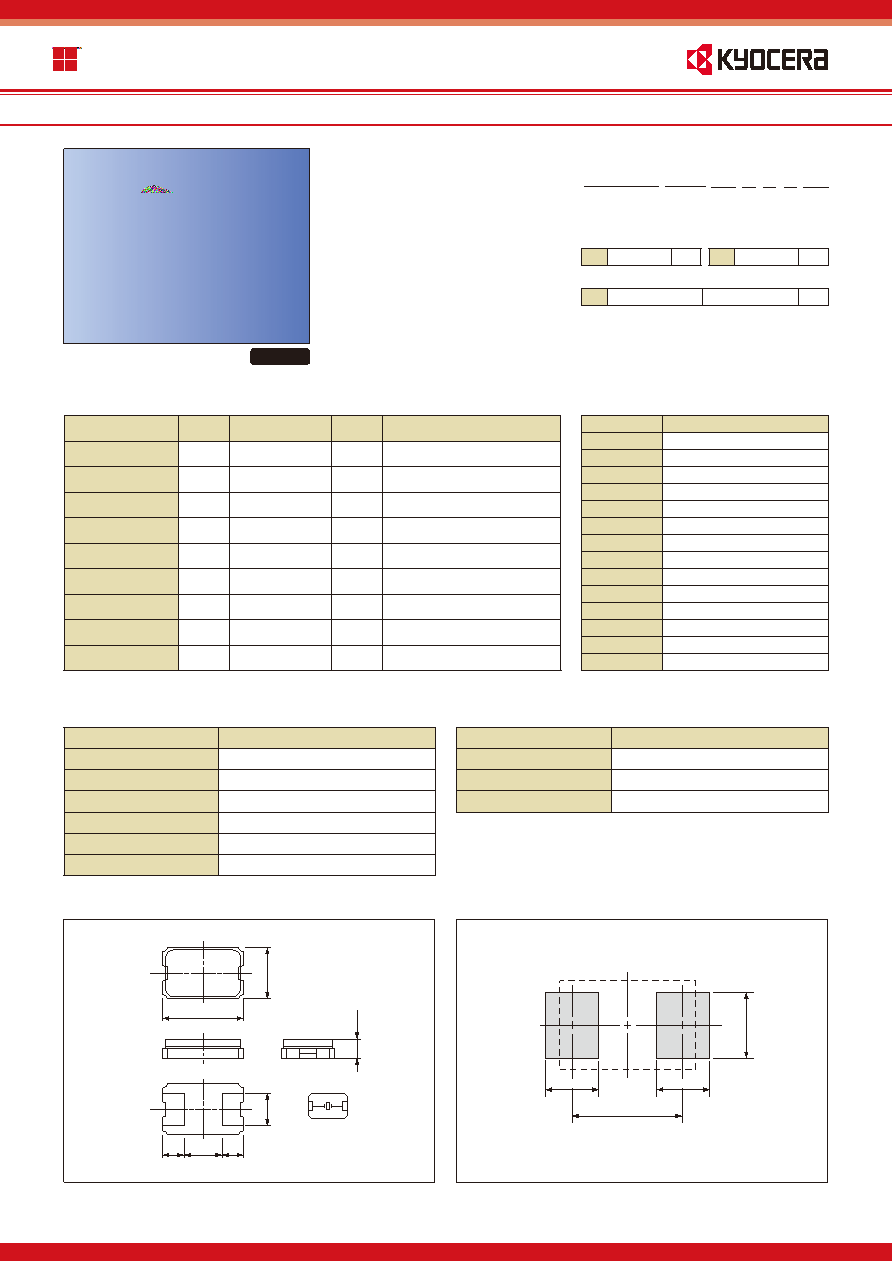

Features
Crystal unit for Consumer Products
Small and low prole (T
=1.1mm max.)
(5.0
×3.2×1.0mm)
Ceramic package
Product with lead free terminations
Reow compatible
Applications
Digital Electronics
Consumer Products
Car audio and accessories
How to Order
CX5032GB 27000
Series
Frequency
Load Capacitance
H0
12 pF
Std.
Frequency Stability
H
±20×106 Std.
Operating Temp. Range
Frequency Temp. Stability
EQ
10 to +70°C
±30×106
Std.
Individual Specication
RoHS Compliant
Specications
Item
Symbol
Specication
Units
Remarks
Frequency Range
f_nom
7372.8 to 54000
kHz
Overtone Order
OT
Fundamental
Load Capacitance
CL
12
pF
Frequency Stability
f_tol
±20
×106
25
°C±3°C
Motional Series Resistance
R1
Table 1
ohm
Drive Level
DL
Table 2
μW
Operating Temp. Range
T_use
10 to +70
°C
Storage Temp. Range
T_stg
40 to +85
°C
FrequencyTemp. Characteristics
f_tem
±30
×106
Freq. deviation from the value at 25
°C
Please contact us for other specifications.
Typical Frequencies and Part Numbers
Frequency (kHz)
Part Number
10000.000
CX5032GB10000H0HEQZ1
12000.000
CX5032GB12000H0HEQZ1
14318.180
CX5032GB14318H0HEQZ1
14745.600
CX5032GB14745H0HEQZ1
16934.400
CX5032GB16934H0HEQZ1
18432.000
CX5032GB18432H0HEQZ1
22579.000
CX5032GB22579H0HEQZ1
24000.000
CX5032GB24000H0HEQZ1
24545.450
CX5032GB24545H0HEQZ1
24576.000
CX5032GB24576H0HEQZ1
27000.000
CX5032GB27000H0HEQZ1
36000.000
CX5032GB36000H0HEQZ1
48000.000
CX5032GB48000H0HEQZ1
54000.000
CX5032GB54000H0HEQZ1
Table1 Motional Series Resistance
Frequency Range
Motional Series Resistance
7372.8 to 9499kHz
300
Ω max.
9500 to 9999kHz
200
Ω max.
10000 to 13999kHz
150
Ω max.
14000 to 19999kHz
100
Ω max.
20000 to 29999kHz
70
Ω max.
30000 to 54000kHz
50
Ω max.
Table2 Level of Drive
Frequency Range
Level of Drive
7372.8 to 15999kHz
10
μW (500μW max.)
16000 to 24999kHz
10
μW (300μW max.)
25000 to 54000kHz
10
μW (100μW max.)
Dimensions
(Unit: mm)
Recommended Land Pattern
(Unit: mm)
Crystal Units
Surface Mount Type CX5032GB (CX-53F)
5.0
×3.2mm for Consumer Products
