PRELIMINARY DATA SHEET - Rev 1.5
10/2007
AWL6254
13
PACKAGE OUTLINE

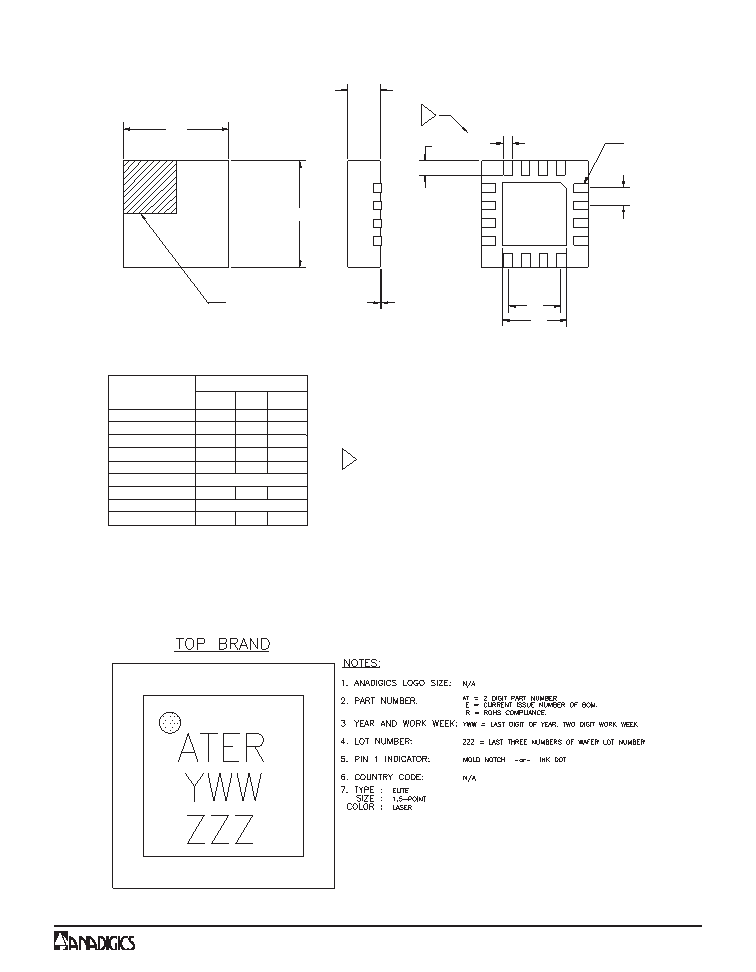

Figure 26: S35 Package Outline - 16 Pin 3 mm x 3 mm x 0.55 mm ULPCC
A
B
Index
Area
C
D
E
F
G
I
H
Top
View
Side
View
Bottom
View
1
4
16
Pin 1
2. Theterminal #1 identifier and pad numbering convention
shallconform toJESD 95-1SPP-012
4. Dimension applies to metalized pad and is measured between
0.25 and 0.30MMfrompad tip.
1. All dimensions are in millimeters, angles in degrees.
.
3. Lead coplanarity: 0.05 max.
DIMENSION
MIN TYP MAX
A
2.90 3.00 3.10
B
2.90 3.00 3.10
C
0.50 0.55 0.60
D
0.00 0.02 0.05
E
1.50 1.65 1.80
F
1.50BSC.
G
0.180 0.250 0.300
H
0.50BSC.
I
0.35 0.40 0.45
MILLIMETERS
