HF MULTIBAND BEAM
10 - 20 Meters
High Front To Back Ratio
On 10/15/20m
Easy To Tune
No complicated gamma
matches to adjust.
Easy To Turn
With a boom length of 7 feet
and a longest element length
of 17 feet, a lightweight TV
rotor will do the trick.
Low VSWR
Flat response across all 5 bands.
VSWR minimum 1.2:1.
Single Feed Point
Only one coaxial feed line is
necessary for all 5 bands.

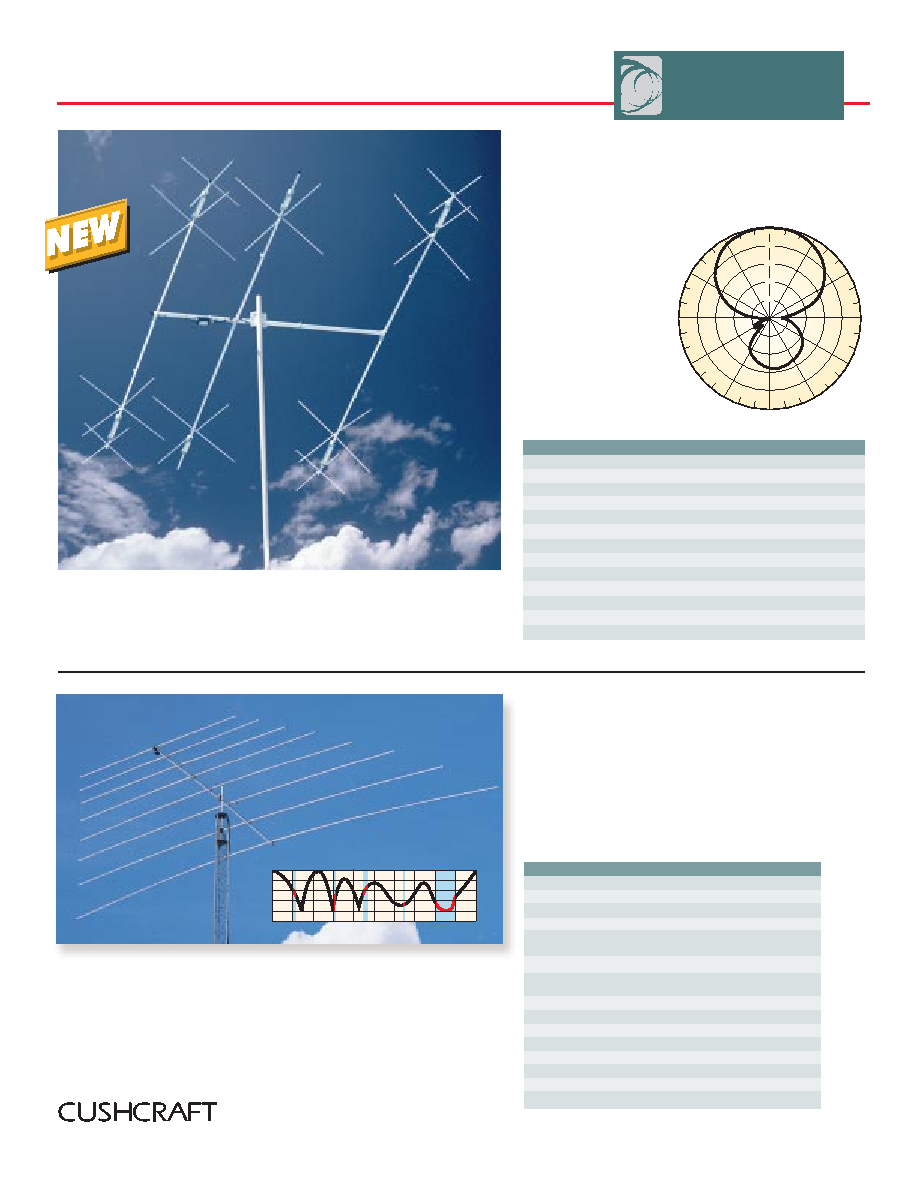

MA5B. Cushcraft’s newest multiband HF antenna provides 5 band directivity in a
package small enough to mount to a tripod. The MA5B is a design that does not
sacrifice ruggedness, performance and power handling for size and ease of installation.
The ASL2010 log periodic antenna is the most cost effective, high gain, five band
antenna solution on the market today. Skylog offers continuous operation from 13.5
to 32 MHz. Antenna gain and beamwidth are constant for uniform coverage from 10
through 20 meters. The ASL2010 is rated for continuous duty at full legal power. Skylog
is designed for maximum gain on a manageable 18 foot boom with only 10.1 square
feet of wind surface area. All stainless steel hardware and rugged element design are
only some of the many features that provide years of superior antenna performance.
Skylog ASL2010 is the smart choice for multiband HF operation.
The Director, Small Footprint–Big Signal
Ch
ft C
ti
M
ht
NH
Rugged Construction
Cushcraft’s tried and true stainless
steel mounting hardware and
heavy wall aluminum tubing make
for a rugged, long lasting antenna.
300°
270°
240°
180°
0°
330°
210°
150°
120 °
90°
60°
30°
-20
0
-5
-10
-15
MA5B
ASL2010
SWR
2.0
1.8
1.6
1.4
1.2
Frequency MHz
16
24
28
14
18
20
22
26
30
20 m
17 m
15 m
12 m
10 m
Skylog
Continuous five band coverage from 13.5 to 32 MHz
Constan ver entire frequency range
6.4 dBi gain, 65 degree beamwidth
High efficiency design, antenna stays cool and VSWR steady
18 foot boom and 19.5 foot turning radius
MA5B SPECIFICATIONS
Frequency, MHz
10
12
15
17
20 Meters
Elements
2
1
2
1
2
per band
Gain
5.3
1.0
4.8
1.0
3.6 dBi
Front to Back Ratio
10
0
12
0
22 dB
Sidelobe Attenuation
25
25 dB
VSWR 2:1 Bandwidth
665
>110
255
>100 90 kHz
Longest Element
17.1ft (5.2m)
Turning Radius
8.8ft (2.7m)
Boom Length
7.3ft (2.2m)
Boom Diameter
1.5in (3.8cm)
Max. Wind Surface Area
3.22 ft2 (.3m2)
Max. Power Handling
1.2 kw
Weight
26.5 ibs. (12kg)
MODEL
ASL2010
Frequency, MHz
13.5-32
No. Elements
8
Forward Gain, dBi
6.4
Front to Back Ratio, dB
15-20
SWR 1.2:1 Typical
2:1 Bandwidth
18.5 MHz
Power Rating, Watts PEP
2000
3dB Beamwidth, Degrees
E Plane
65
Boom Length, ft (m)
18 (5.48)
Boom Diameter, in (cm)
2.0 (5.08)
Longest Element, ft (m)
38 (11.58)
Element Ctr Dia., in (cm)
1.25 (3.18)
Turning Radius, ft (m)
19.25 (5.86)
Mast Size Range, in (cm)
1.5-2 (3.8-5.1)
Wind Load, ft
2 (m2)
10.1 (.93)
Weight, lb (kg)
55 (25.5)
