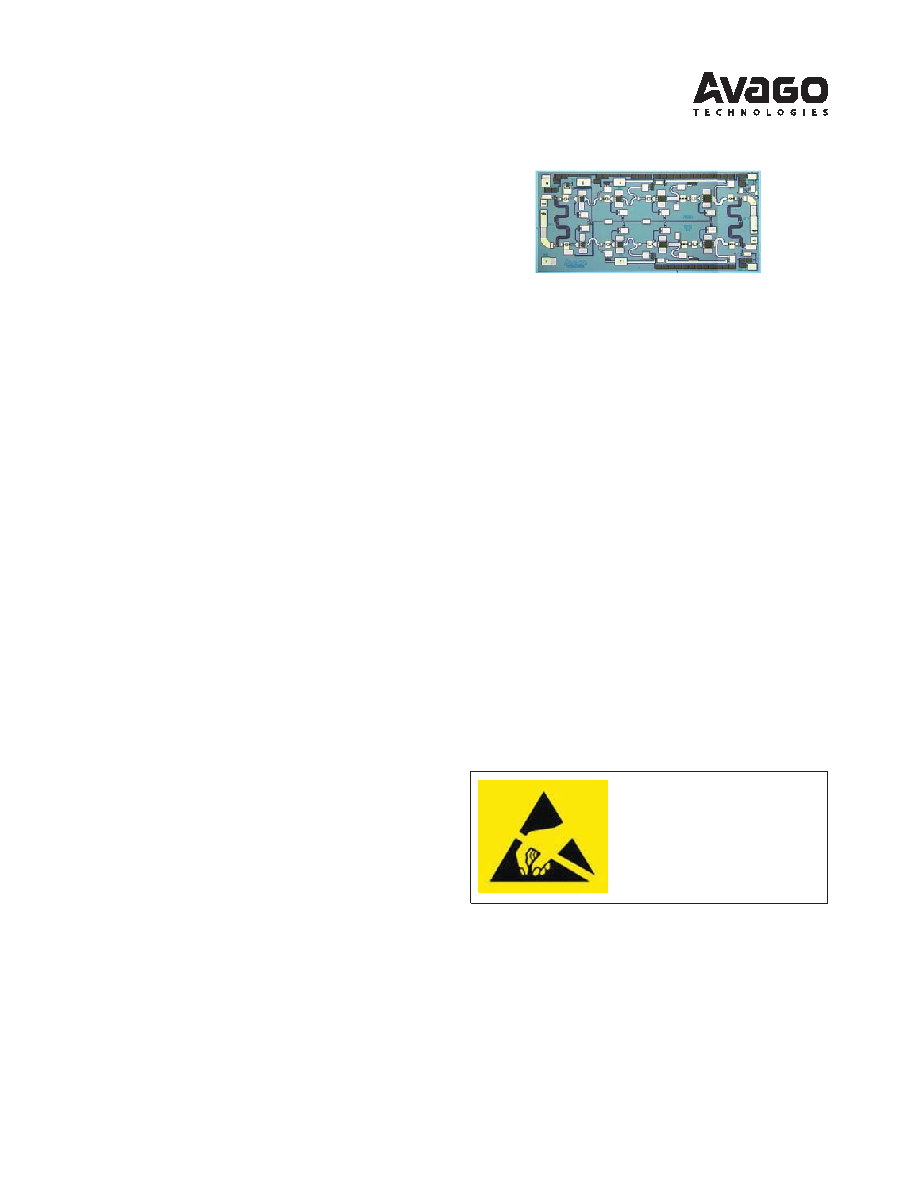

AMMC-6333
18 – 33 GHz 0.2 W Driver Amplier
Data Sheet
Attention: Observe precautions for
handling electrostatic sensitive devices.
ESD Machine Model (Class A) = 90 V
ESD Human Body Model (Class 1A) = 300 V
Refer to Avago Application Note A004R:
Electrostatic Discharge, Damage and Control.
Description
The AMMC-6333 is a broadband 0.2 W MMIC driver
amplier designed for use in transmitters operating in
various frequency bands from 18 GHz to 33 GHz. This
small, easy to use device provides over 23 dBm of output
power (P-1dB) and more than 20 dB of gain at 25 GHz. It
was optimized for linear operation with an output power
at the third order intercept point (OIP3) of 30dBm. The
AMMC-6333 features a temperature compensated RF
power detection circuit that enables power detection sen-
sitivity of 0.3 V/W at 25GHz. It is fabricated using Avago
Technologies unique 0.25
Pm E-mode PHEMT technol-
ogy which eliminates the need for negative gate biasing
voltage.
Features
x Frequency range: 18 to 33 GHz
x Small signal gain: 20 dB
x P-1dB : 23dBm
x Return Loss (In/Out): -10 dB
Applications
x Microwave Radio systems
x Satellite VSAT, Up/Down Link
x LMDS & Pt-Pt mmW Long Haul
x Broadband Wireless Access (including 802.16 and
802.20 WiMax)
x WLL and MMDS loops
Chip Size: 2500 x 1300
Pm (100 x 51 mils)
Chip Size Tolerance: ± 10
Pm (±0.4 mils)
Chip Thickness: 100 ± 10
Pm (4 ± 0.4 mils)
Pad Dimensions: 100 x 100
Pm (4 x 4 ± 0.4 mils)
