14
Data Sheet - Rev 2.3
09/2008
ACA0861 - A, B, C, D
APPLICATION INfORMATION

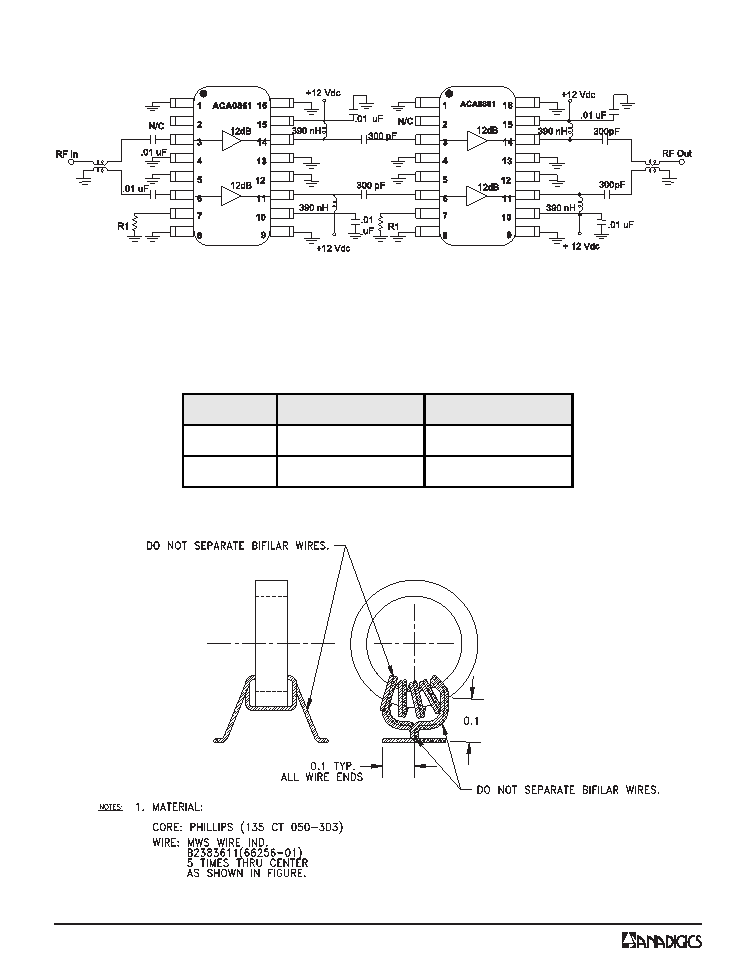

figure 42: Hybrid Equivalent Test Circuit
Notes:
1. Apply voltage to all +12 Vdc lines simultaneously.
2. See Table 6 for R1 values.
3. Input and output baluns: wind 5 turns thru core (see Table 7), as shown in Figure 43.
figure 43: Balun Drawing (5 Turns)
Table 7: Parts List for Balun (5 Turns)
PART
VENDOR
VENDOR PART NO.
ferrite core
Philips
TC3.4/1.8/1.3-3D3
wire
MWS Wire industries
B238611
