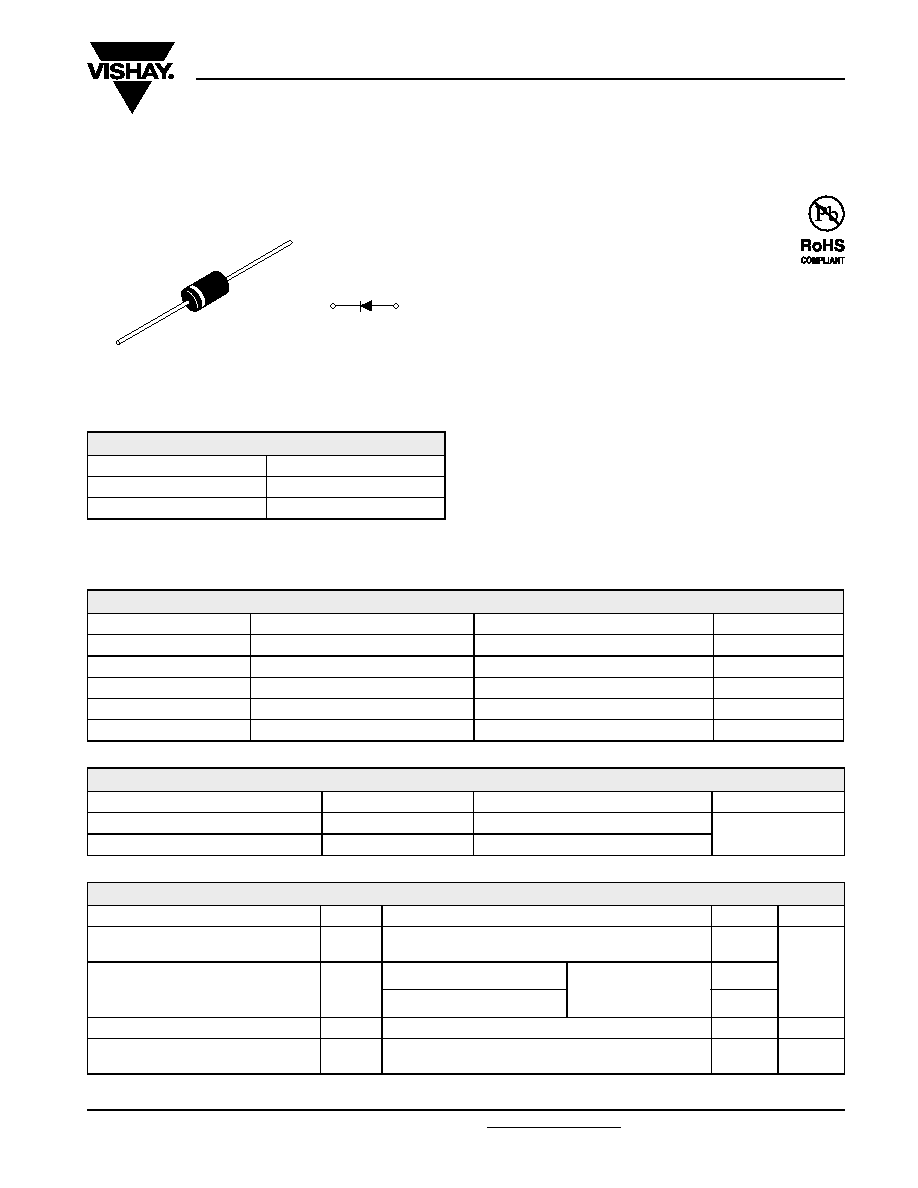

Document Number: 93419
For technical questions, contact: diodes-tech@vishay.com
www.vishay.com
Revision: 07-Nov-08
1
Schottky Rectifier, 9 A
95SQ015
Vishay High Power Products
FEATURES
125 °C TJ operation (VR < 5 V)
Optimized for OR-ing applications
Ultralow forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and long term
reliability
High purity, high temperature epoxy encapsulation for
enhanced mechanical strength and moisture resistance
Lead (Pb)-free plating
Designed and qualified for industrial level
DESCRIPTION
The 95SQ015 axial leaded Schottky rectifier has been
optimized for ultralow forward voltage drop specifically for
the OR-ing of parallel power supplies. The proprietary barrier
technology allows for reliable operation up to 100 °C junction
temperature. Typical applications are in parallel switching
power supplies, converters, reverse battery protection, and
redundant power subsystems.
PRODUCT SUMMARY
IF(AV)
9 A
VR
15 V
IRM
348 mA at 100 °C
DO-204AR
Cathode
Anode
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL
CHARACTERISTICS
VALUES
UNITS
IF(AV)
Rectangular waveform
9
A
VRRM
15
V
IFSM
tp = 5 s sine
2900
A
VF
9 Apk, TJ = 75 °C
0.25
V
TJ
Range
- 55 to 100
°C
VOLTAGE RATINGS
PARAMETER
SYMBOL
95SQ015
UNITS
Maximum DC reverse voltage
VR
15
V
Maximum working peak reverse voltage
VRWM
25
ABSOLUTE MAXIMUM RATINGS
PARAMETER
SYMBOL
TEST CONDITIONS
VALUES
UNITS
Maximum average forward current
See fig. 5
IF(AV)
50 % duty cycle at TC = 55 °C, rectangular waveform
9
A
Maximum peak one cycle
non-repetitive surge current
See fig. 7
IFSM
5 s sine or 3 s rect. pulse
Following any rated load
condition and with rated
VRRM applied
2900
10 ms sine or 6 ms rect. pulse
400
Non-repetitive avalanche energy
EAS
TJ = 25 °C, IAS = 1 A, L = 9 mH
4.5
mJ
Repetitive avalanche current
IAR
Current decaying linearly to zero in 1 s
Frequency limited by, TJ maximum VA = 3 x VR typical
1A
