TLC3702
DUAL MICROPOWER LinCMOS
VOLTAGE COMPARATORS
SLCS013D – NOVEMBER 1986 – REVISED NOVEMBER 1998
18
POST OFFICE BOX 655303
DALLAS, TEXAS 75265
APPLICATION INFORMATION
The inputs should always remain within the supply rails in order to avoid forward biasing the diodes in the
electrostatic discharge (ESD) protection structure. If either input exceeds this range, the device is not damaged
as long as the input is limited to less than 5 mA. To maintain the expected output state, the inputs must remain
within the common-mode range. For example, at 25
°C with VDD = 5 V, both inputs must remain between
–0.2 V and 4 V to ensure proper device operation.
To ensure reliable operation, the supply should be decoupled with a capacitor (0.1
F) that is positioned as close
to the device as possible.
The TLC3702 has internal ESD-protection circuits that prevent functional failures at voltages up to 2000 V as
tested under MIL-STD-883C, Method 3015.2; however, care should be exercised in handling these devices as
exposure to ESD may result in the degradation of the device parametric performance.
Table of Applications
FIGURE
Pulse-width-modulated motor speed controller
25
Enhanced supply supervisor
26
Two-phase nonoverlapping clock generator
27
Micropower switching regulator
28
C1
0.01
F
(see Note B)
5 V
1/2 TLC3702
Motor Speed Control
Potentiometer
+
–
+
–
10 k
100 k
10 k
10 k
See
Note A
1/2 TLC3704
10 k
5 V
DIR
EN
SN75603
Half-H Driver
12 V
Motor
DIR
EN
12 V
Direction
Control
S1
SPDT
5 V
SN75604
Half-H Driver
NOTES: A. The recommended minimum capacitance is 10
F to eliminate common ground switching noise.
B. Adjust C1 for change in oscillator frequency.

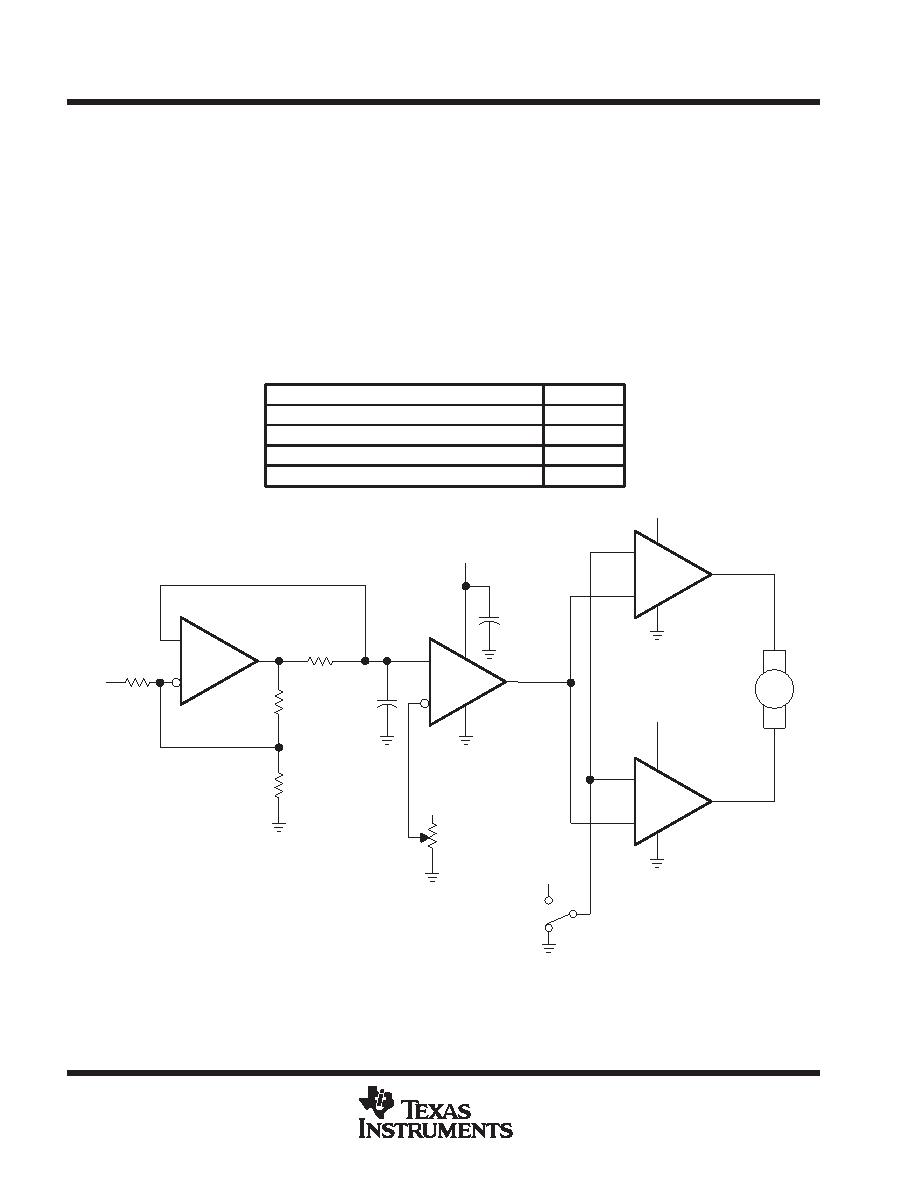

Figure 25. Pulse-Width-Modulated Motor Speed Controller
