參數資料
| 型號： | 5962-9088203V2A |
| 廠商： | TEXAS INSTRUMENTS INC |
| 元件分類： | 運算放大器 |
| 英文描述： | OP-AMP, 400 uV OFFSET-MAX, 1.8 MHz BAND WIDTH, CQCC20 |
| 封裝： | CERAMIC, LCCC-20 |
| 文件頁數： | 1/22頁 |
| 文件大?。?/td> | 863K |
| 代理商： | 5962-9088203V2A |
NC - No internal connection
3
2
4
5
6
7
8
18
17
16
15
14
NC
VDD +
NC
OUT
NC
IN-
NC
IN +
D
-
V
NC
/G
N
D

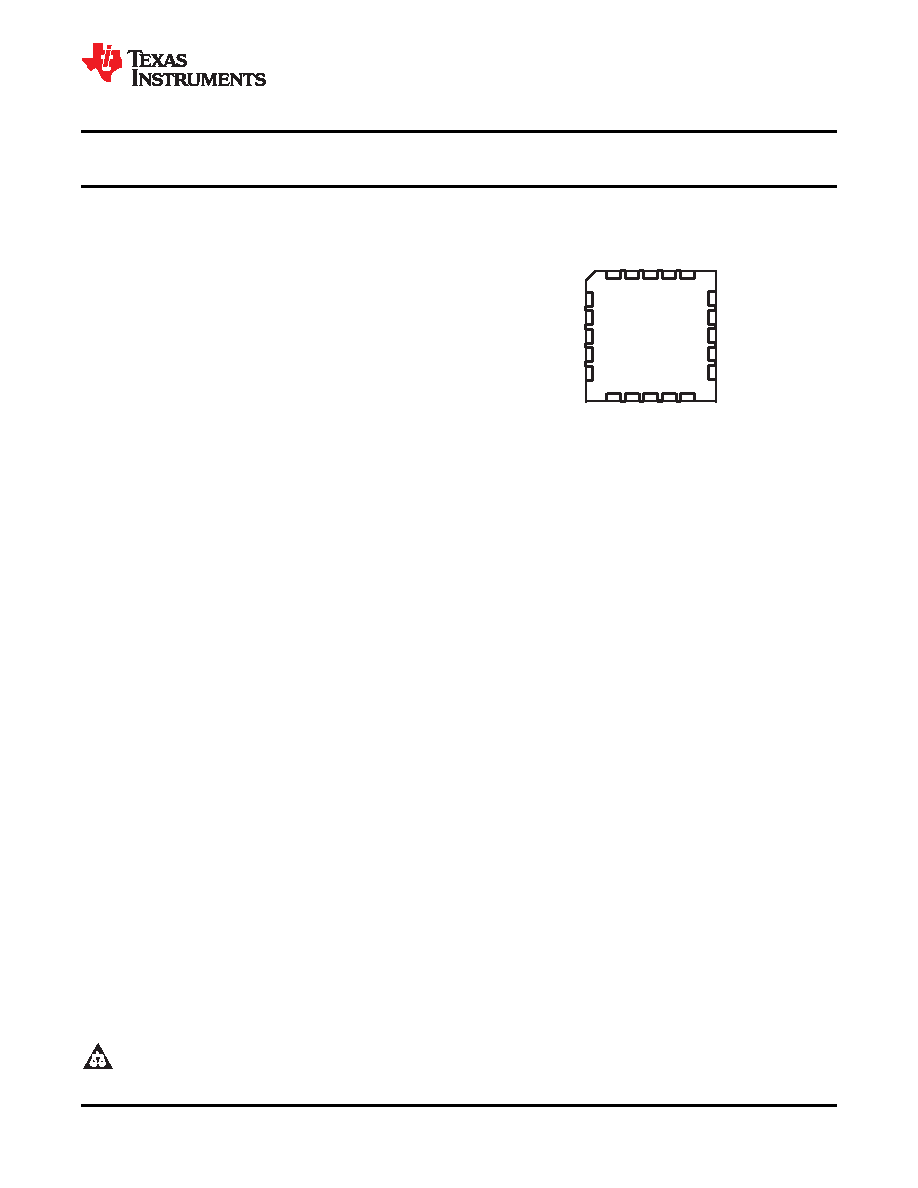

FK PACKAGE
(TOP VIEW)
1
20 19
9 10 11 12 13
SLOS710
– FEBRUARY 2011
CLASS V, ADVANCED LinCMOS
LOW NOISE PRECISION OPERATIONAL AMPLIFIER
Check for Samples: TLC2201-SP
1
FEATURES
23
QML-V Qualifed SMD 5962-9088203V2A
Low Input Offset Voltage: 400
μV Max
Excellent Offset Voltage Stability With
Temperature: 0.5
μV/°C Typ
Rail-to-Rail Output Swing
Low Input Bias Current: 1 pA Typ at TA = 25°C
Common-Mode Input Voltage Range Includes
the Negative Rail
Fully Specified For Both Single-Supply and
Split-Supply Operation
DESCRIPTION
The TLC2201 is a precision, low-noise operational amplifier using Texas Instruments Advanced LinCMOS
process. This device combines the noise performance of the lowest-noise JFET amplifiers with the dc precision
available previously only in bipolar amplifiers. The Advanced LinCMOS
process uses silicon-gate technology to
obtain input offset voltage stability with temperature and time that far exceeds that obtainable using metal-gate
technology. In addition, this technology makes possible input impedance levels that meet or exceed levels
offered by top-gate JFET and expensive dielectric-isolated devices.
The combination of excellent DC and noise performance with a common-mode input voltage range that includes
the negative rail makes these devices an ideal choice for high-impedance, low-level signal-conditioning
applications in either single-supply or split-supply configurations.
The device inputs and outputs are designed to withstand
100-mA surge currents without sustaining latch-up. In
addition, internal ESD-protection circuits prevent functional failures at voltages up to 2000 V as tested under
MIL-PRF-38535, Method 3015.2; however, care should be exercised in handling these devices as exposure to
ESD may result in degradation of the parametric performance.
The TLC2201 is characterized for operation over the full military temperature range of
55°C to 125°C.
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
2
LinCMOS is a trademark of Texas Instruments.
3
Parts, PSpice are trademarks of MicroSim Corporation.
PRODUCTION DATA information is current as of publication date.
2011, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
