MtronPTI reserves the right to make changes to the product described herein without notice. No liability is assumed as a result of its use or application.
SPECIFICATION FOR HC-49/U CRYSTAL
MtronPTI P/N 463-000-R
Effective Date: May 5, 2006
I. GENERAL & ELECTRICAL REQUIREMENTS:
1. MODE OF OSCILLATION: Fundamental AT-Cut Crystal
2. AVAILABLE FREQUENCY RANGE: 1.843200 to 34.0000 MHz
3. FREQUENCY TOLERANCE @ +25°C: ± 30 ppm max.
4. FREQUENCY STABILITY OVER TEMPERATURE: ± 50 ppm max.
5. OPERATING TEMPERATURE RANGE: -10°C to +70°C
6. EFFECTIVE SERIES RESISTANCE (ESR): See Table 1
7. LOAD CAPACITANCE: 20 pF
8. SHUNT CAPACITANCE: 7.0 pF max.
9. AGING: ± 5 ppm/yr. max.
10. DRIVE LEVEL: 1mW max. 100 W typ. 50W min.
II. ENVIRONMENTAL & MECHANICAL REQUIREMENTS:
1. SHOCK: Per MIL-STD-202, Method 213, Condition C
2. VIBRATION: Per MIL-STD-202, Method 201 & 204
3. HERMETICITY: 1 X 10
-8 atm cc/sec min.
4. THERMAL CYCLE: Per MIL-STD-883, Method 1010 B.
5. MAXIMUM WAVE SOLDERING CONDITIONS: +260°C for 10 secs.
6. SOLDERABILITY: Per EIAJ-STD-002
7. PACKAGE: HC-49/U resistance weld. RoHS compliant.

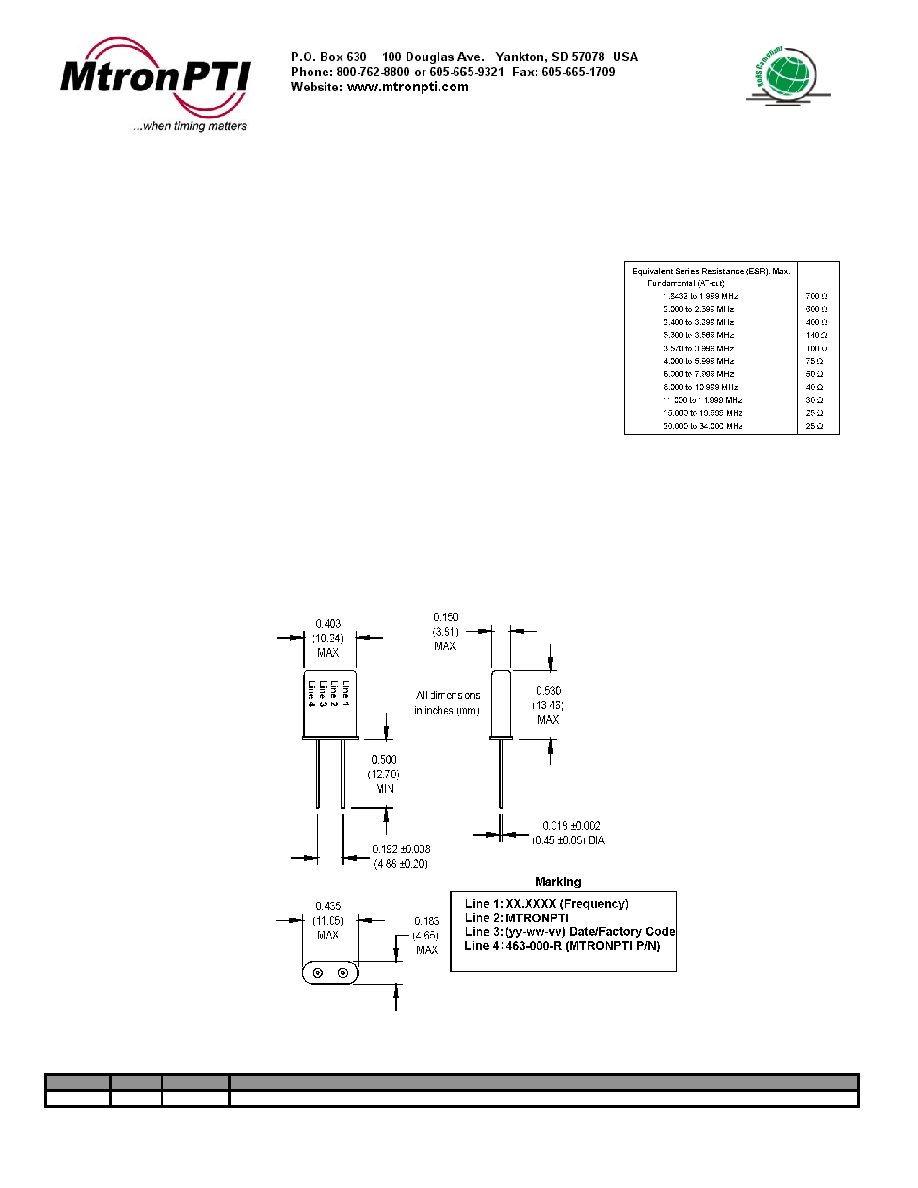

III. DIMENSIONS:
IV. DATA SHEET REVISION TABLE:
Date
Rev.
Orig.
Details of Revision
5/5/06
0
WNJ
Original release.
Table 1
