2N6576
Bipolar NPN Device.
V
CEO =
60V
I
C = 15A
All Semelab hermetically sealed products
can be processed in accordance with the
requirements of BS, CECC and JAN,
JANTX, JANTXV and JANS specifications.
Parameter
Test Conditions
Min.
Typ.
Max.
Units
V
CEO*
60
V
I
C(CONT)
15
A
h
FE
@ 3/10 (V
CE / IC)
500
5000
-
f
t
200M
Hz
P
D
120
W
* Maximum Working Voltage
This is a shortform datasheet. For a full datasheet please contact sales@semelab.co.uk.
Semelab Plc reserves the right to change test conditions, parameter limits and package dimensions without notice. Information furnished by Semelab is believed
to be both accurate and reliable at the time of going to press. However Semelab assumes no responsibility for any errors or omissions discovered in its use.
Generated
31-Jul-02

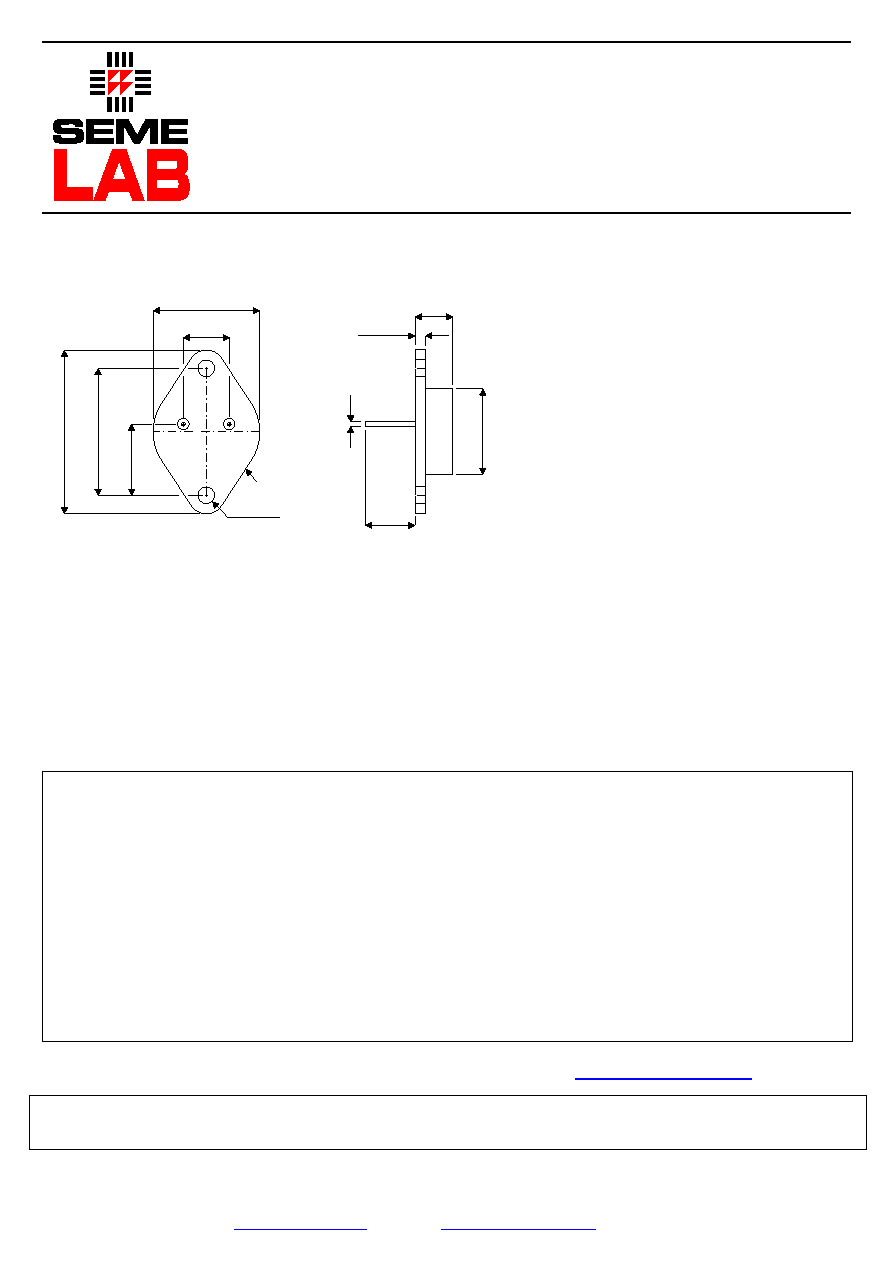

TO3 (TO204AA)
PINOUTS
1 – Base
2 – Emitter
Case - Collector
Bipolar NPN Device in a
Hermetically sealed TO3
Metal Package.
Semelab plc.
Telephone +44(0)1455 556565. Fax +44(0)1455 552612.
E-mail: sales@semelab.co.uk
Website: http://www.semelab.co.uk
Dimensions in mm (inches).
12
3
(case)
25.15 (0.99)
26.67 (1.05)
10.67 (0.42)
11.18 (0.44)
38.
61
(
1
.52)
39.
12
(
1
.54)
29.
9
(
1
.177)
30.
4
(
1
.197)
16.
64
(
0
.655)
17.
15
(
0
.675)
3.84 (0.151)
4.09 (0.161)
0.
97
(
0
.060)
1.
10
(
0
.043)
7.92 (0.312)
12.70 (0.50)
22.
23
(0
.875)
ma
x
.
6.35 (0.25)
9.15 (0.36)
1.52 (0.06)
3.43 (0.135)
