GHz TECHNOLOGY INC. RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE. GHz RECOMMENDS THAT
BEFORE THE PRODUCT(S) DESCRIBED HEREIN ARE WRITTEN INTO SPECIFICATIONS, OR USED IN CRITICAL APPLICATIONS,
THAT THE PERFORMANCE CHARACTERISTICS BE VERIFIED BY CONTACTING THE FACTORY.
GHz Technology Inc. 3000 Oakmead Village Drive, Santa Clara, CA 95051-0808 Tel. 408 / 986-8031 Fax 408 / 986-8120

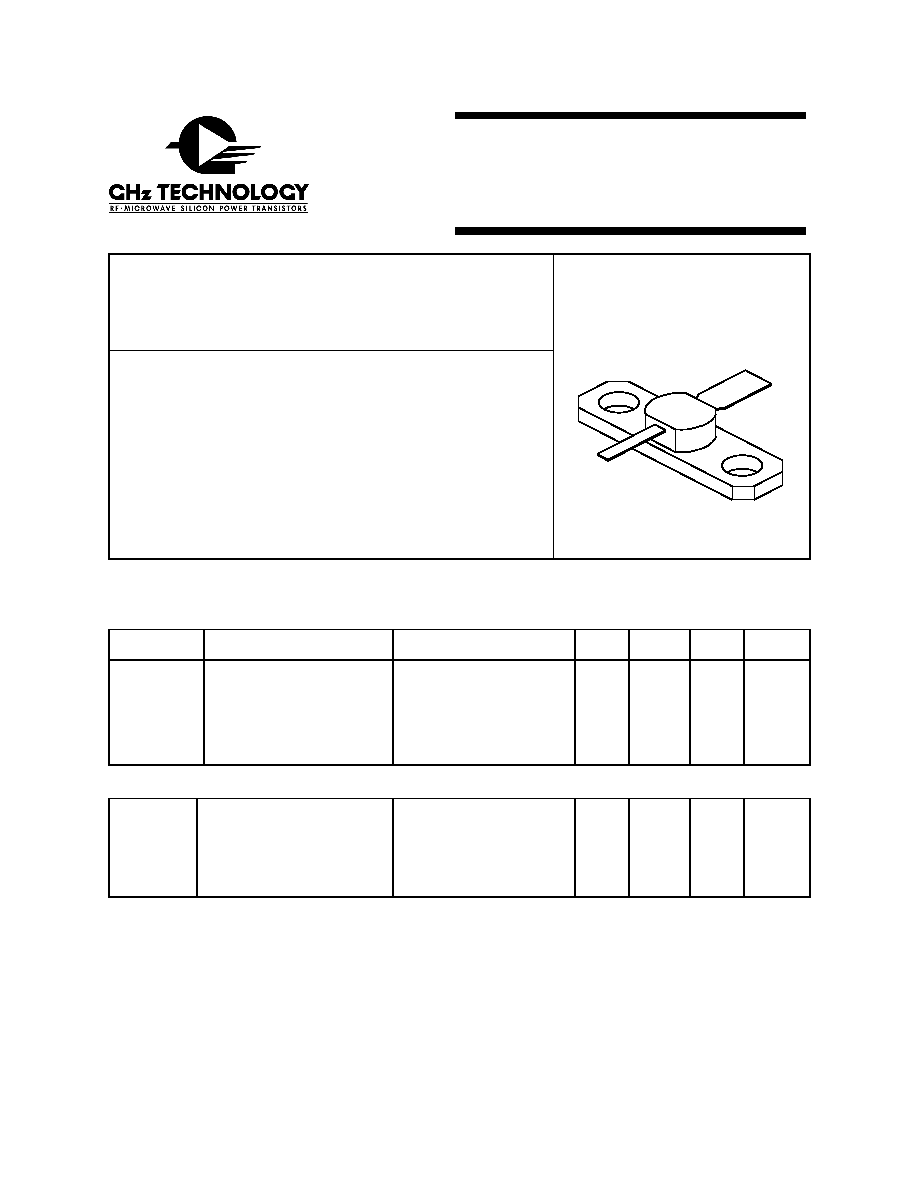

2301
1.5 Watt - 20 Volts, Class C
Microwave 2300 MHz
GENERAL DESCRIPTION
The 2301 is a COMMON BASE transistor capable of providing 1.5 Watts
Class C, RF output power at 2300 MHz. Gold metalization and diffused
ballasting are used to provide high reliability and supreme ruggedness. The
transistor uses a fully hermetic High Temperature Solder Sealed package.
CASE OUTLINE
55 BT- Style 1
ABSOLUTE MAXIMUM RATINGS
Maximum Power Dissipation @ 25 C
5.6 Watts
o
Maximum Voltage and Current
BVces
Collector to Emitter Voltage
45 Volts
BVebo
Emitter to Base Voltage
3.5 Volts
Ic
Collector Current
0.3 A
Maximum Temperatures
Storage Temperature
- 65 to + 200 C
o
Operating Junction Temperature
+ 200 C
o
ELECTRICAL CHARACTERISTICS @ 25 C
O
SYMBOL
CHARACTERISTICS
TEST CONDITIONS
MIN
TYP
MAX
UNITS
Pout
Pin
Pg
η
c
VSWR
1
Power Out
Power Input
Power Gain
Collector Efficiency
Load Mismatch Tolerance
F = 2.3 GHz
Vcb = 20 Volts
Po = 1.5 Watts
As Above
F = 2.3 GHz, Po = 1.5 W
1.5
8.0
40
0.24
30:1
Watt
dB
%
BVces
BVebo
h
FE
Cob
θjc
Collector to Emitter Breakdown
Emitter to Base Breakdown
Current Gain
Output Capacitance
Thermal Resistance
Ic = 10 mA
Ie = 1.0 mA
Vce = 5 V, Ic = 100 mA
F = 1.0 MHz, Vcb = 22V
45
3.5
10
4.0
31
Volts
pF
C/W
o
Issue August 1996
