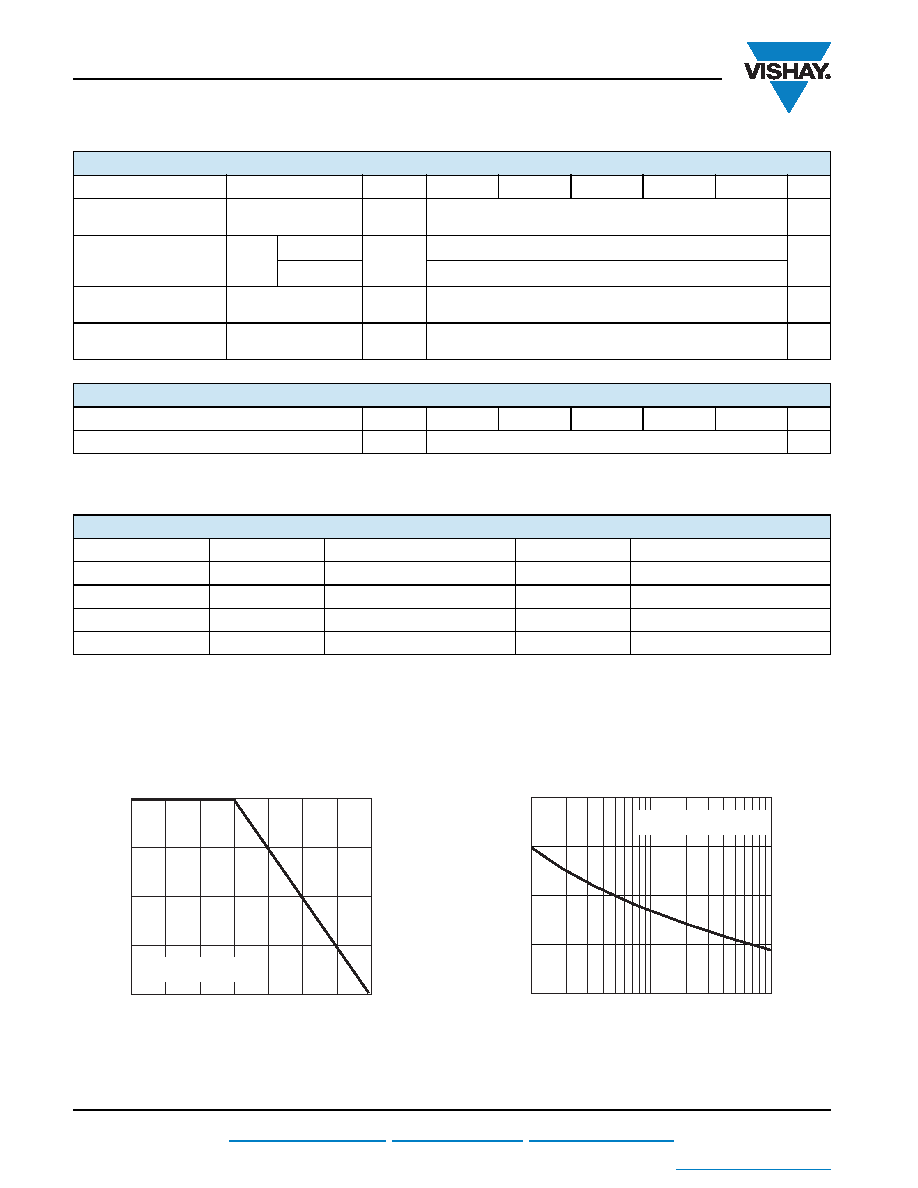

1N4933GP thru 1N4937GP
Vishay General Semiconductor
Note
(1) Thermal resistance from junction to ambient and from junction to lead at 0.375" (9.5 mm) lead length, PCB mounted
Note
(1) AEC-Q101 qualified
RATINGS AND CHARACTERISTICS CURVES
(TA = 25 °C unless otherwise noted)
Fig. 1 - Forward Current Derating Curve
Fig. 2 - Maximum Non-repetitive Peak Forward Surge Current
ELECTRICAL CHARACTERISTICS (TA = 25 °C unless otherwise noted)
PARAMETER
TEST CONDITIONS
SYMBOL
1N4933GP
1N4934GP
1N4935GP
1N4936GP
1N4937GP
UNIT
Maximum instantaneous
forward voltage
1.0 A
VF
1.2
V
Maximum DC reverse
current at rated DC
blocking voltage
TA = 25 °C
IR
5.0
μA
TA = 125 °C
100
Maximum reverse
recovery time
IF = 1.0 A, VR = 30 V
trr
200
ns
Typical junction
capacitance
4.0 V, 1 MHz
CJ
15
pF
THERMAL CHARACTERISTICS (TA = 25 °C unless otherwise noted)
PARAMETER
SYMBOL
1N4933GP
1N4934GP
1N4935GP
1N4936GP
1N4937GP
UNIT
Typical thermal resistance
RJA (1)
55
°C/W
ORDERING INFORMATION (Example)
PREFERRED P/N
UNIT WEIGHT (g)
PREFERRED PACKAGE CODE
BASE QUANTITY
DELIVERY MODE
1N4933GP-E3/54
0.336
54
5500
13" diameter paper tape and reel
1N4933GP-E3/73
0.336
73
3000
Ammo pack packaging
1N4933GPHE3/54 (1)
0.336
54
5500
13" diameter paper tape and reel
1N4933GPHE3/73 (1)
0.336
73
3000
Ammo pack packaging
Ambient Temperature (°C)
Average
Forward
Rectified
Current
(A)
0
25
50
75
100
125
150
175
0
0.25
0.50
0.75
1.00
Resistive or Inductive Load
0.375" (9.5 mm) Lead Length
1
10
100
0
10
20
30
40
Peak
Forward
S
urge
Current
(A)
Number of Cycles at 60 Hz
T
J = TJ Max.
8.3 ms Single Half Sine-Wave
