MC34016
12
MOTOROLA ANALOG IC DEVICE DATA

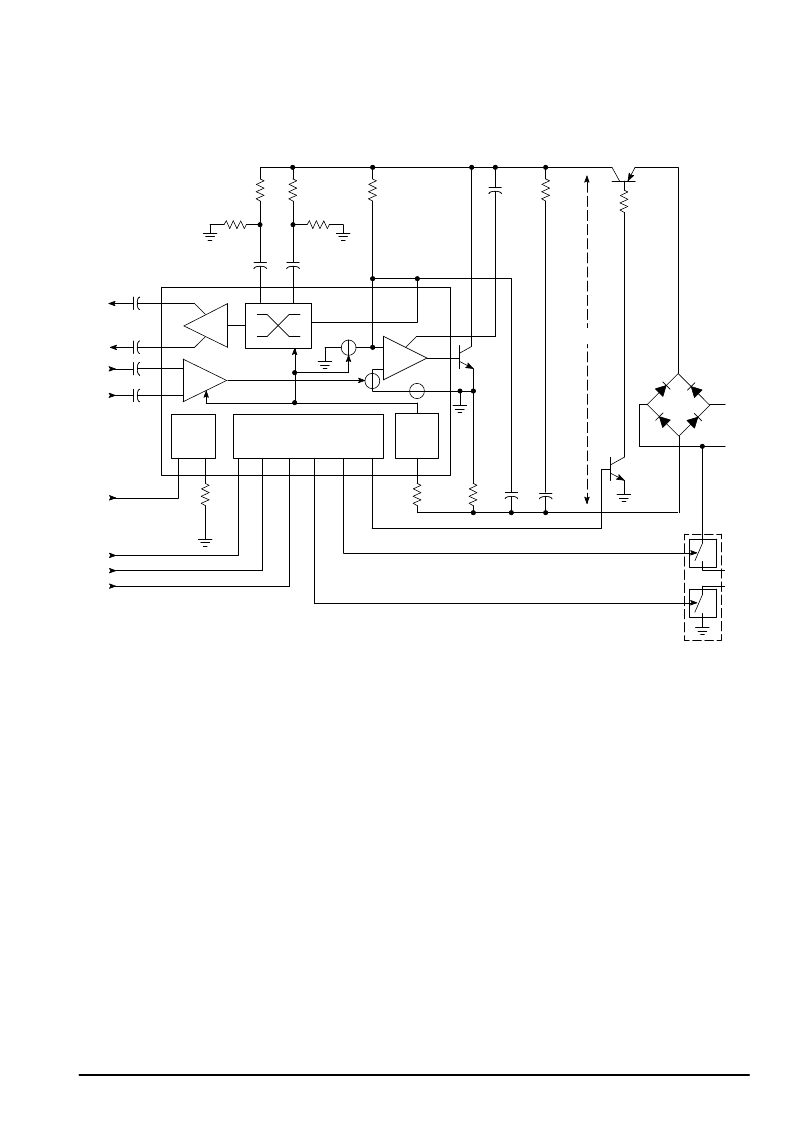

Figure 10. Typical Application with Passive Impedance and Voltage Regulation
Line
Driver
Supply
Serial Bus Interface
AGC
Rx
Tx
Rx1
Rx2
Tx1
Tx2
LAO
Gnd
Stab
HYS
HYL
LAI
SRF
VCCIref
Clk
Data
BEN Out1
Out2
HKSW
AGC
VBG
IBG
RHL1
18 k
RHL2
RDC1
470 k
CStab
100 p
RSET
600
RHS1
18 k
RHS2
CHL1
0.047
CHS1
0.047
3.0 k
3.0 k
CRx1 0.047
CRx2 0.047
CTx1 0.047
CTx2 0.047
Q1
RAGC
100 k
RS
50
CM
0.1
CSET
4.7
μ
Rref
59 k
Q3
MPSA42
Q2
MJE350
Receive
Outputs
Transmit
Inputs
Supply
From
MPU
Vline
D2
D1
D4
D3
B, Ring
A, Tip
Optional
Shunt
Earth
RINT
560
1N4004
MC34016
+
NOTE:
Sidetone Networks not adapted to country specific telephone lines.
